Hyundai Santa Cruz: Driving Safety / Safe Exit Warning (SEW)
.jpg)

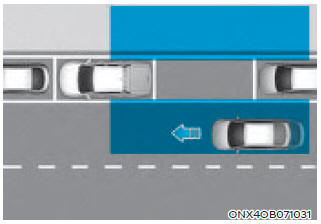

Safe Exit Warning is designed to monitor traffic in an adjacent lane after your vehicle is stopped and parked. If the function detects an approaching vehicle, Safe Exit Warning will warn the driver through an audible alert and a warning message to deter the driver or passenger from opening the door in front of oncoming traffic.
CAUTION
Warning timing may vary depending on the speed of the approaching vehicle.

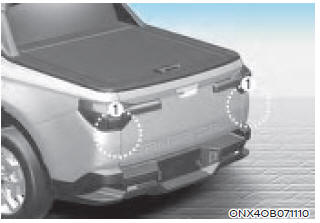

Detecting sensor
.jpg)
[1] : Rear corner radar
Refer to the picture above for the detailed location of the detecting sensors.
CAUTION
For more details on the precautions of the rear corner radars, refer to “Blind- Spot Collision-Avoidance Assist (BCA)” section in chapter 7.
Blind-Spot Collision-Avoidance
Assist Malfunction and
Limitations
Blind-Spot Collision-Avoidance
Assist malfunction
When Blind-Spot Collision-Avoidance
Assist is not working properly, the ‘Check
Blind-Spot Safety system’ warning
message appears on the clust ...
Safe Exit Warning Settings
Setting features
Safe Exit Warning
With the engine on, select 'Driver Assistance>Blind-Spot Safety>Safe Exit
Warning' from the Settings menu to turn
on Safe Exit Warning and deselect to turn ...
