Hyundai Santa Cruz: Crash Pad / Glove Box

- Component Location

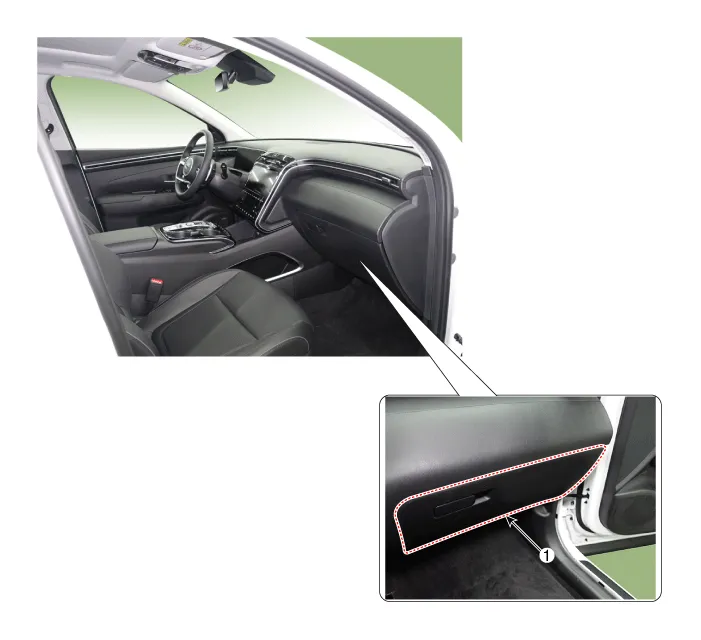

1. Glove box


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

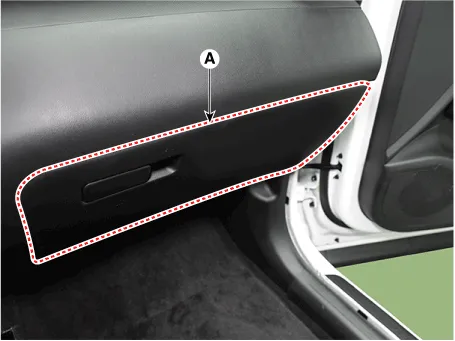

1.Open the glove box (A).

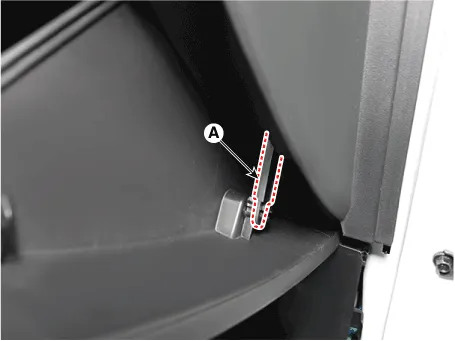

2.Remove the air damper (A) from the glove box.

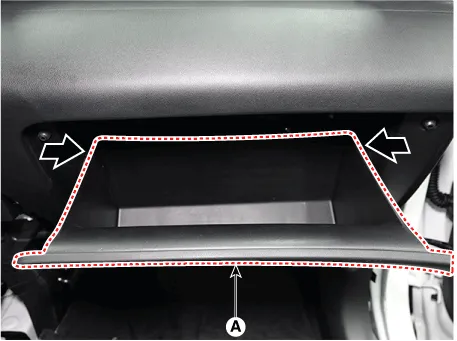

3.Press the side of the glove box and remove the glove box (A).

4.Install in the reverse order of removal.



• Replace any damaged clips (or pin - type retainers).
