Hyundai Santa Cruz: Hydraulic System / Valve Body Assembly

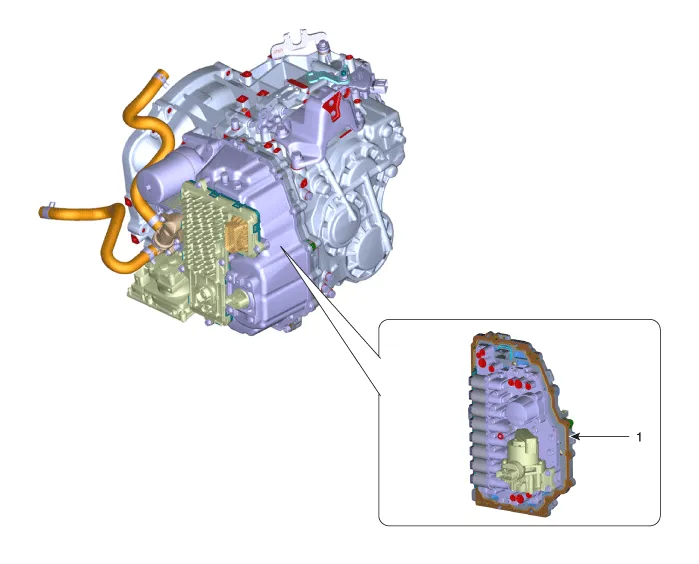

- Components Location

1. Valve Body Assembly

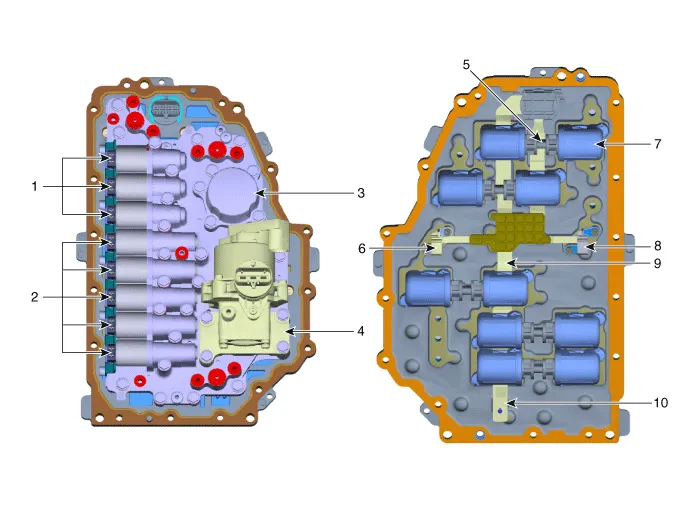

- Components

1. Oil pressure control solenoid valve
2. Oil flow control solenoid valve
3. Pressure filter
4. High Pressure Electric Oil Pump (HP EOP)
5. Piston
6. Input speed sensor (Odd)
7. Cylinder housing
8. Input speed sensor (Even)
9. Flexible PCB (Position sensor)
10. Oil temperature sensor


- Replacement



• When the valve body assembly needs to be replaced, replace the DCT assembly because the valve body assembly is unable to replace.



• Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

1.Replace the dual clutch transmission assembly.(Refer to Dual Clutch Transmission System - "Dual Clutch Transmission")

    Accumulator
    - Components and Components Location 1. Accumulator2. Accumulator bracket - Description • It stores the oil in the accumulator by operating the EOP. • EOP will stop when a certain ...

    High Pressure Electric Oil Pump (HP EOP)
    - Description • The High Pressure Electric Oil Pump (HP EOP) consists of the motor and the pump and it is controlled by the TCM. • It stores the amount of oil required for control in the ac ...
