Hyundai Santa Cruz: Rear Door / Rear Door Latch

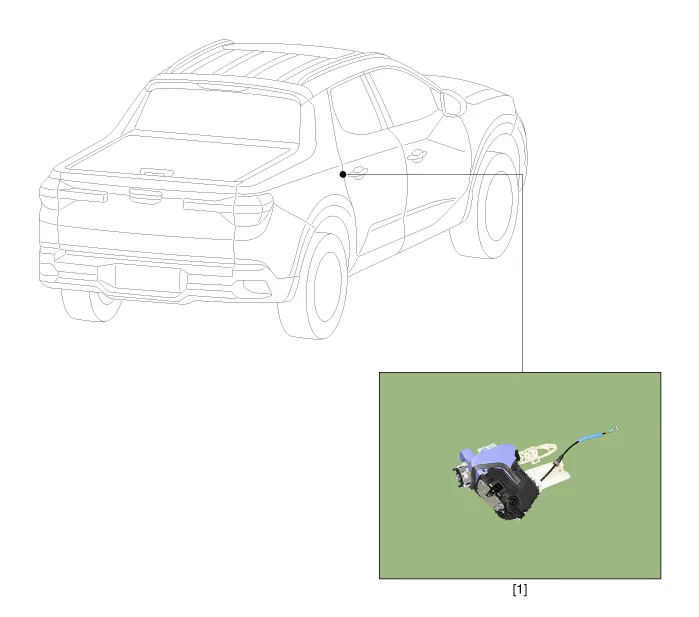

- Components Location

1. Rear door latch


- Replacement

1.Remove the rear door module.(Refer to Rear Door - "Rear Door Module")

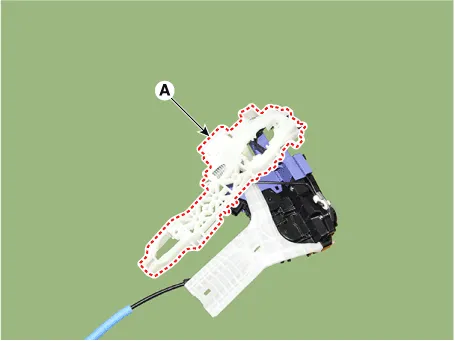

2.Remove the rear door inside handle cage (A).

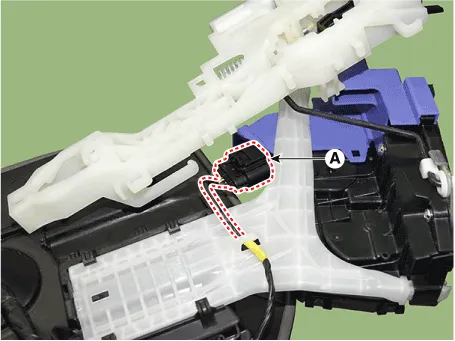

3.Separate the rear door outside handle base connector and wiring harness (A).

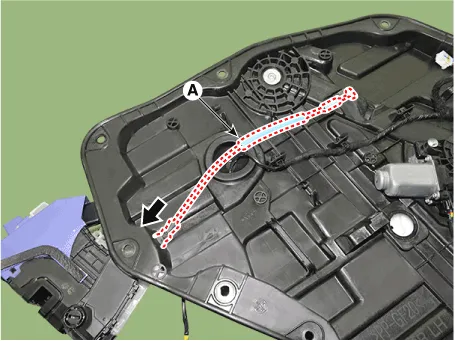

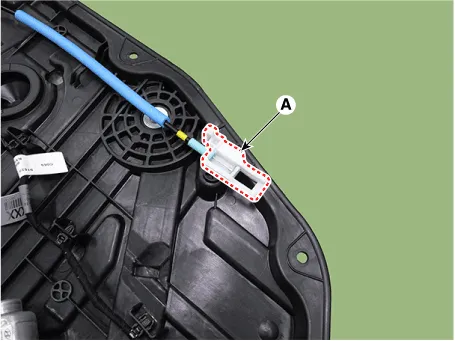

4.Remove the rear door inside handle cable (A) by pushing it in the direction of the arrow.

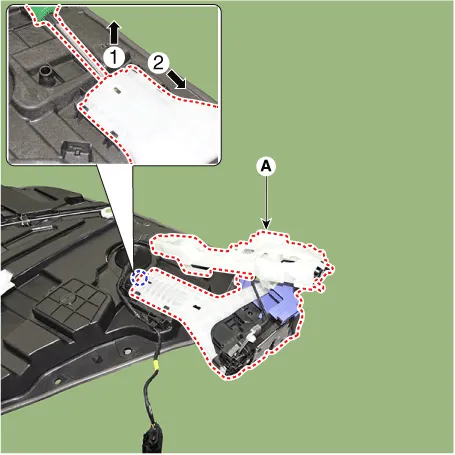

5.Remove the rear door latch (A).

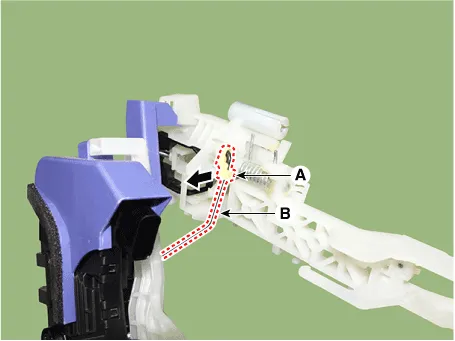

6.Disconnect the lock pin (A) in the direction of the arrow and then separate the connecting rod (B).

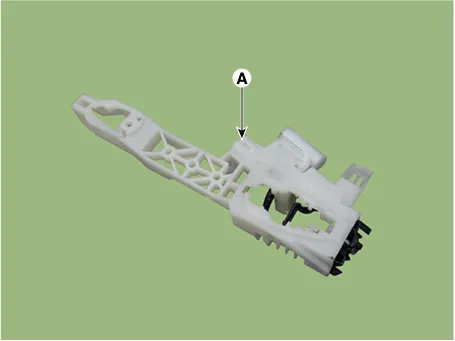

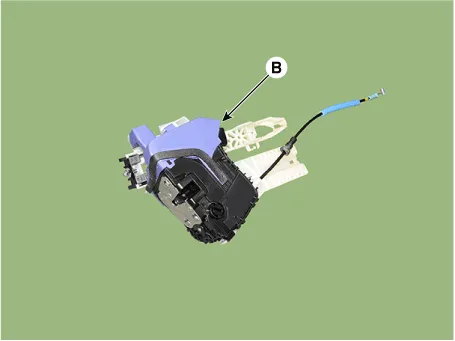

7.Press the lock pin, remove the rear door outside handle base braket (A) from the rear door latch (B).

8.To install, reverse removal procedure.



• Make sure the connector is connected properly.

• Make sure the door locks / unlocks and opens / closes properly.

• Replace any damaged clips (or pin-type retainers).
