Hyundai Santa Cruz: Rear Door / Rear Door Side Weatherstrip

- Replacement [Rear door side weatherstrip]

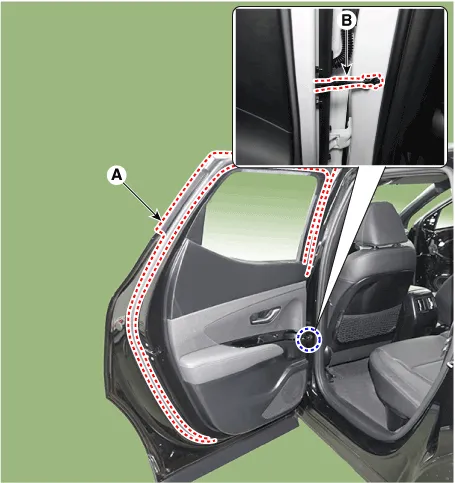

1.Loosen the rear door checker (B) mounting bolt.

Tightening torque :16.7 - 21.6 N.m (1.7 - 2.2 kgf.m, 12.3 - 15.9 lb-ft)

2.Detach the clips, then remove the rear door side weatherstrip (A).

3.To install, reverse removal procedure.

[Rear door body side weatherstrip]

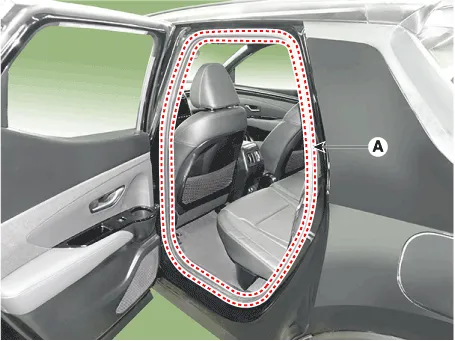

1.Remove the rear door body side weatherstrip (A).

2.To install, reverse removal procedure.

    Rear Door Belt Inside Weatherstrip
    - Replacement 1.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim") 2.Remove the rear door belt inside weatherstrip (A). 3.To install, reverse removal procedure.     ...
