Hyundai Santa Cruz: Fuel Filler Door / Components and Components Location

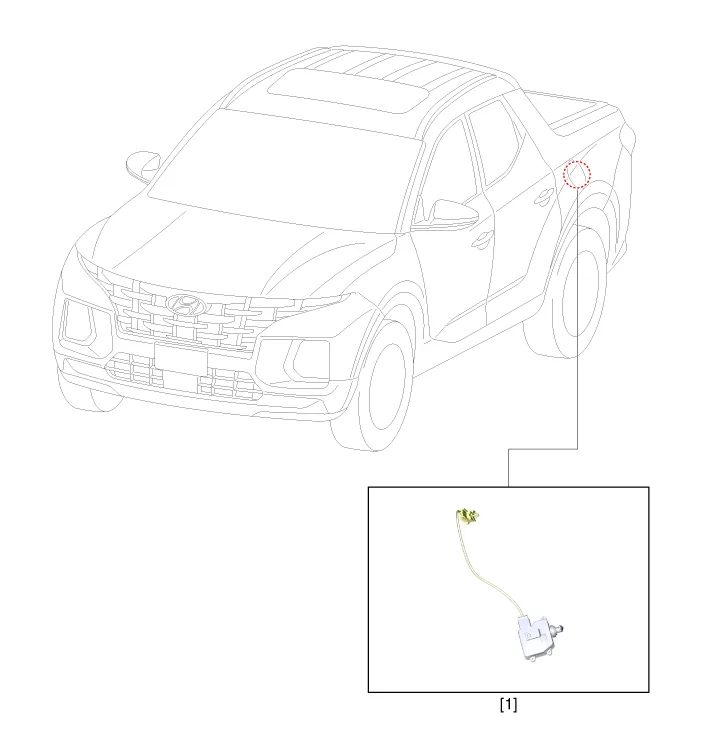

- Component Location

1. Fuel filler door release actuator


    Fuel Filler Door
    ...

    Fuel Filler Door Release Actuator
    - Inspection 1.Disconnect the negative (-) battery terminal. 2.Remove the fuel filler housing after opening the fuel filler door.(Refer to Body - "Fuel Filler Door") 3.Disconnect the connector ...
