Hyundai Santa Cruz: Fuel Filler Door / Fuel Filler Door Release Actuator

- Inspection

1.Disconnect the negative (-) battery terminal.

2.Remove the fuel filler housing after opening the fuel filler door.(Refer to Body - "Fuel Filler Door")

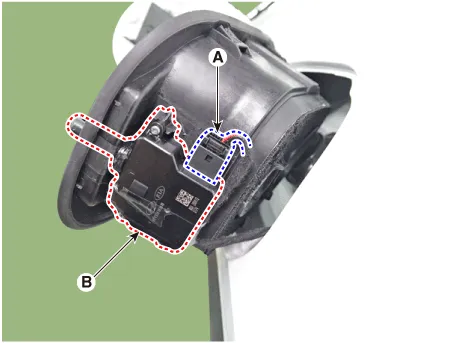

3.Disconnect the connector (A) and then remove tht release actuator (B) after loosening mounting screws.

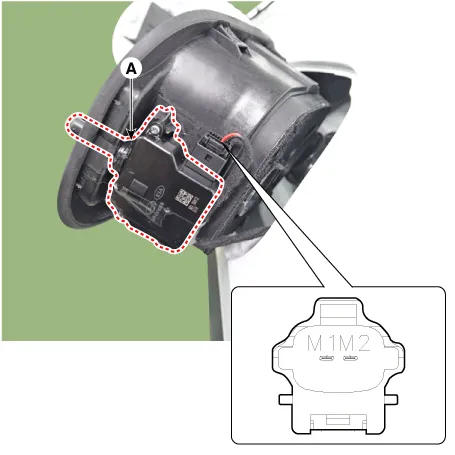

4.Check for continuity between terminal No. 1 and No. 2. If there is no continuity, replace the fuel filler door release actuator (A).

    Components and Components Location
    - Component Location 1. Fuel filler door release actuator ...
