Hyundai Santa Cruz: Seat Electrical / Components and Components Location

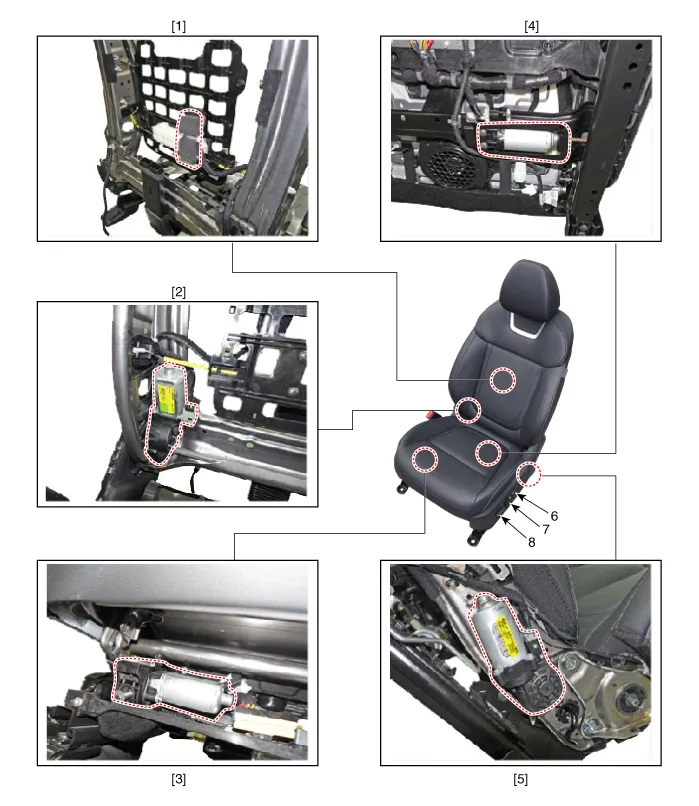

- Component Location

1. Lumber support motor
2. Reclining motor
3. Front height motor
4. Slide motor
5. Rear height motor
6. Lumbar support switch
7. Reclining switch
8. Power seat switch


    Seat Electrical
    ...

    Power Seat Motor
    - Inspection Seat Motor 1.Remove the front seat assembly.(Refer to Body - "Front Seat Assembly")A: Slide motorB: Rear height motorC: Front height motorD: Lumbar support motor E: Reclining moto ...
