Hyundai Santa Cruz: Fuses And Relays / Components and Components Location

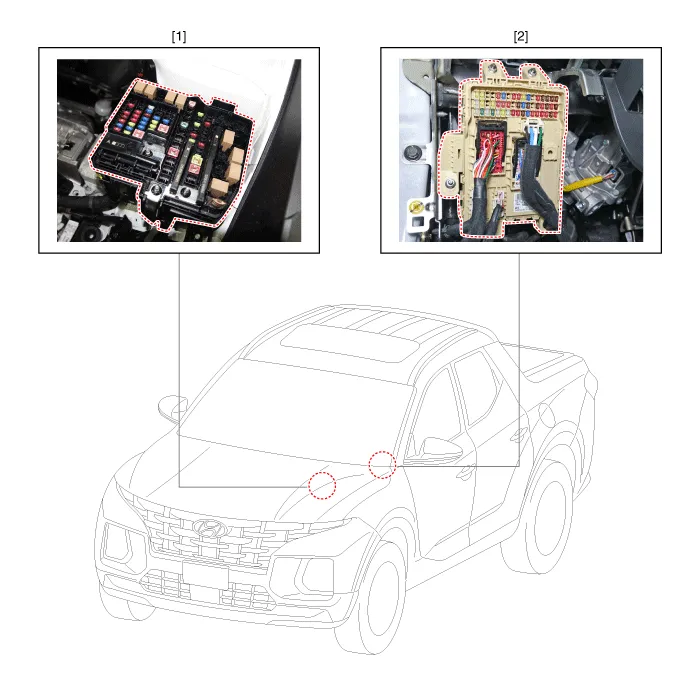

- Component Location

1. Engine room junction block
2. ICU Junction block


    Fuses And Relays
    ...

    Relay Box (Engine Compartment)
    - Inspection Power Relay (Type A) 1.There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals. 2.There should be no ...
