Hyundai Santa Cruz: Driving Safety / Driver Attention Warning (DAW)
Basic function
Driver Attention Warning can help determine the driver's attention level by analyzing driving pattern and driving time while the vehicle is driven. Driver Attention Warning will recommend a break when the driver’s attention level falls below a certain level.
Leading Vehicle Departure Alert function
Leading Vehicle Departure Alert function will inform the driver when a detected vehicle in front departs from a stop.
Detecting sensor

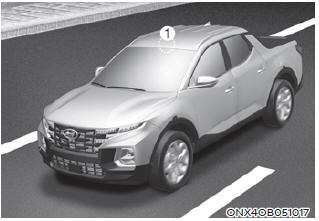

.jpg)
[1] : Front view camera
The front view camera is used to help detect driving patterns and front vehicle departure while vehicle is being driven.
Refer to the picture above for the detailed location of the detecting sensor.
CAUTION
- Always keep the front view camera in good condition to maintain optimal performance of Driver Attention Warning.
- For more details on the precautions of the front view camera, refer to “Forward Collision-Avoidance Assist (FCA)” section in chapter 7.
- Driver Attention Warning Settings
- Driver Attention Warning Operation
- Driver Attention Warning Malfunction and Limitations
