Basic function
Display and warning
The basic function of Driver Attention Warning is to inform the driver of their ‘Attention Level’ and to warn the driver to ‘Consider taking a break’.

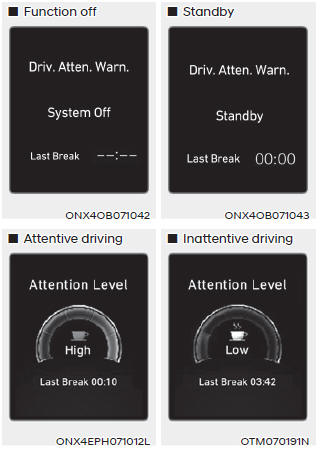

Attention Level
• The driver can monitor his/her driving conditions on the cluster.
- When the ‘Inattentive Driving
Warning’ is deselected from the
Settings menu, ‘System Off’ is
displayed.
- Driver Attention Warning will
operate when vehicle speed is
between 0-110 mph (0-180 km/h).
- When vehicle speed is not within
the operating speed, the message
‘Standby’ will be displayed.
• The driver’s attention level is displayed on the scale of 1 to 5. The lower the level is, the more inattentive the driver is.
• The level decreases when the driver does not take a break for a certain period of time.

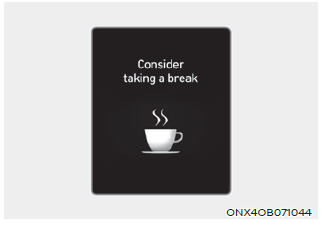

Taking a break
WARNING
For your safety, change the Settings after parking the vehicle at a safe location.
CAUTION
Information
Leading Vehicle Departure Alert function

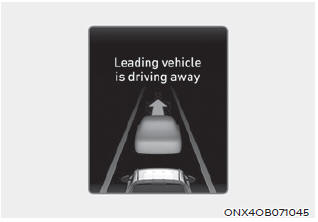

When a detected vehicle in front departs from a stop, Leading Vehicle Departure Alert will inform the driver by displaying the ‘Leading vehicle is driving away’ message on the cluster and an audible warning will sound.
WARNING
CAUTION
Information
The images and colors in the cluster may differ depending on the cluster type or theme selected from the cluster.
