Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Body Electrical System / Power Door Locks / Components and Components Location

Hyundai Santa Cruz: Power Door Locks / Components and Components Location

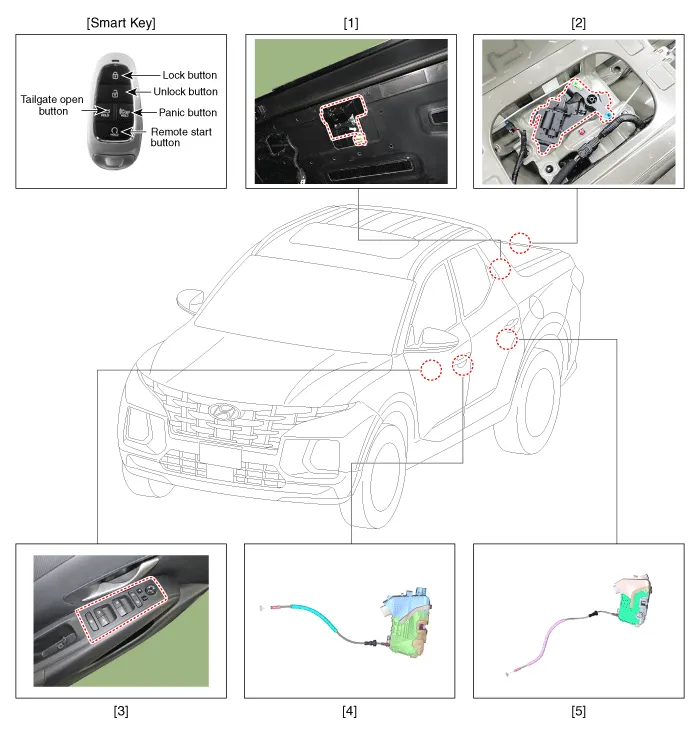

- Component Location

1. Liftgate lock actuator
2. Bed Floor Latch
3. Driver door moudle (DDM)
4. Front door lock actuator
5. Rear door lock actuator

Power Door Lock Actuators

- Inspection Front Door Lock Module Inspection 1.Remove the front door trim.(Refer to Body - "Front Door Trim") 2.Disconnect the connectors from the actuator. 3.Check actuator operation by co ...
