Hyundai Santa Cruz: Power Door Locks / Power Door Lock Actuators

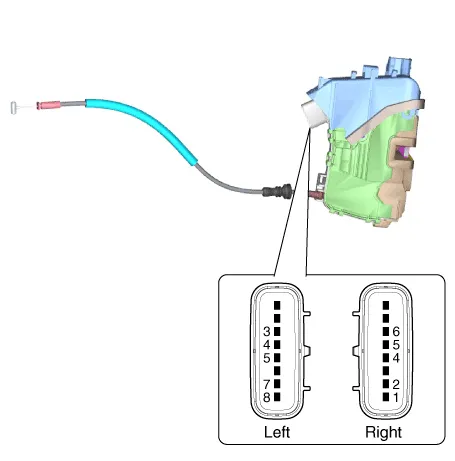

- Inspection Front Door Lock Module Inspection

1.Remove the front door trim.(Refer to Body - "Front Door Trim")

2.Disconnect the connectors from the actuator.

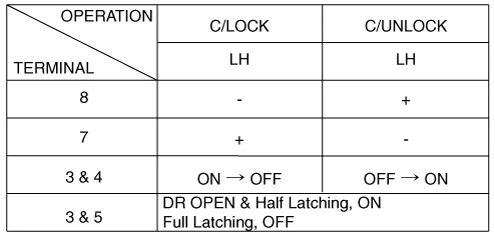

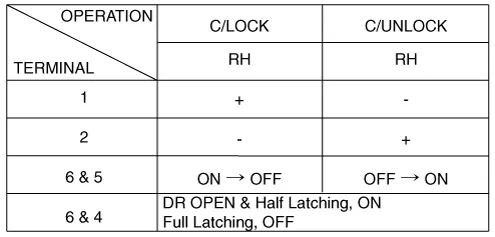

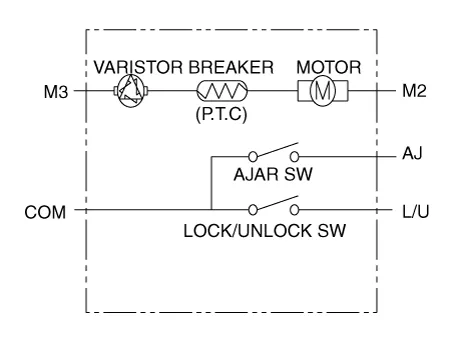

3.Check actuator operation by connecting power and ground according to the table.

PinDescription
DriverPanssenger
1-M2
2-M3
3COM-
4Lock/Unlock switchAJAR
5AJARLock/Unlock switch
6-COM
7M3-
8M2-

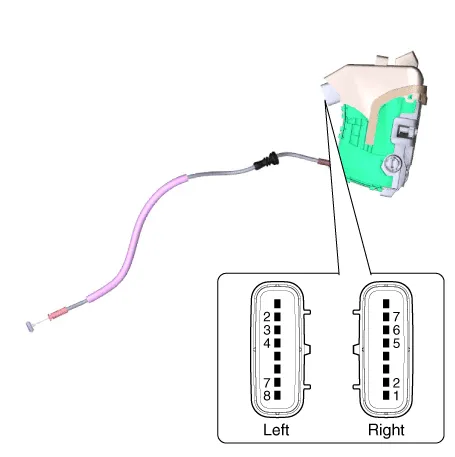

Rear Door Lock Module Inspection

1.Remove the rear door trim.(Refer to Body - "Rear Door Trim")

2.Disconnect the connectors from the actuator.

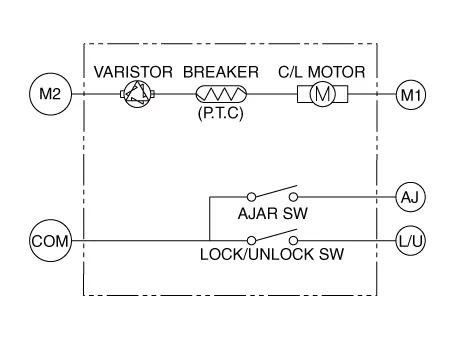

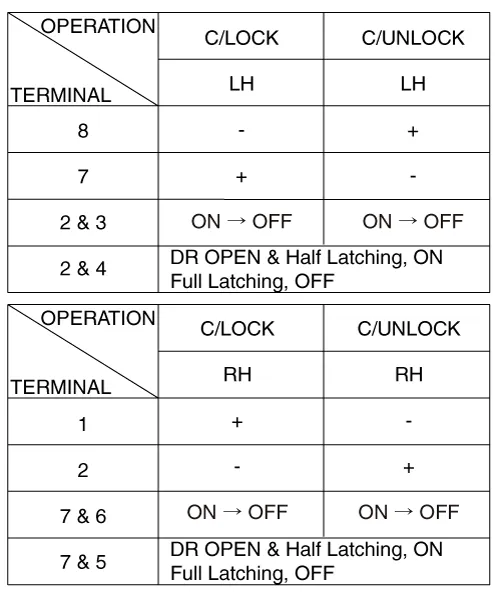

3.Check actuator operation by connecting power and ground according to the table.

PinDescription
DriverPanssenger
1-M1
2COMM2
3Lock/Unlock switch-
4AJAR-
5-AJAR
6-Lock/Unlock switch
7M2COM
8M1-

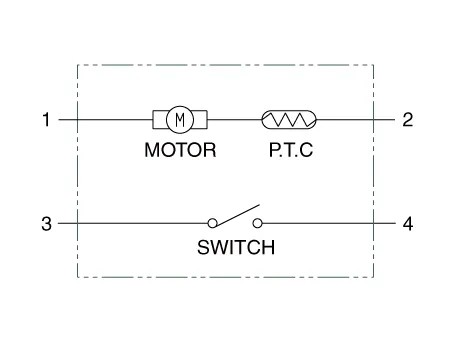

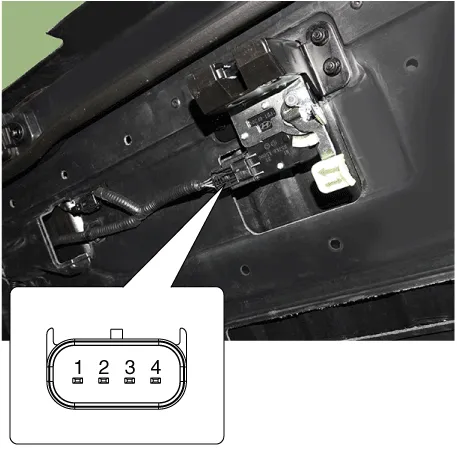

Liftgate Latch Inspection

1.Remove the liftlgate trim.(Refer to Body - "Liftgate Trim")

2.Disconnect the connector from the actuator.

3.Check actuator operation by connecting power and ground according to the table.

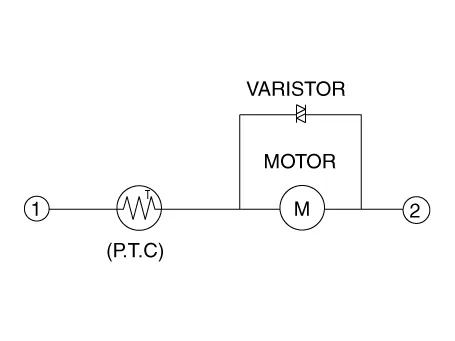

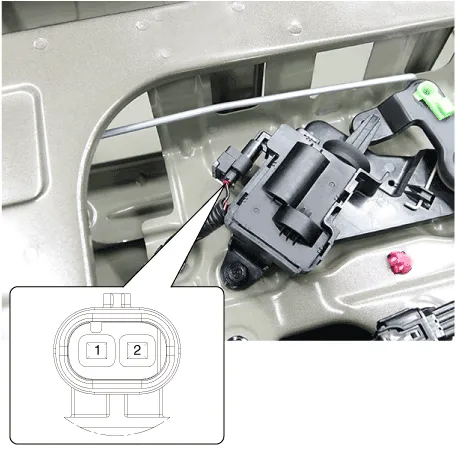

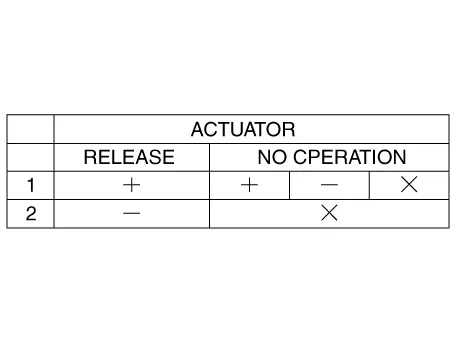

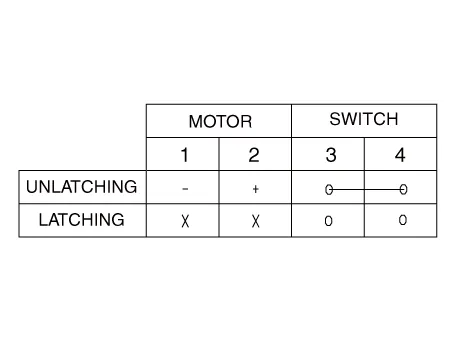

Bed Floor Latch Inspection

Hood Switch

1.Disconnect the hood switch connector (A).

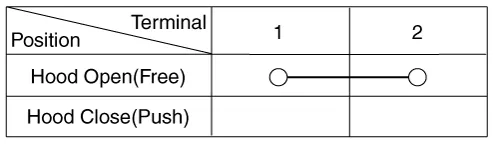

2.Check for continuity between the terminals and ground according to the circuit diagram.

    Components and Components Location
    - Component Location 1. Liftgate lock actuator2. Bed Floor Latch3. Driver door moudle (DDM)4. Front door lock actuator5. Rear door lock actuator ...

    Power Door Lock Switch
    - Inspection Power Door Lock Switch Inspection 1.1. Check for continuity between the terminals. If there is an abnormality, replace the switch. Diagnosis with Diagnostic Tool 1.In the body ...
