Hyundai Santa Cruz: Front Door / Front Door Latch

- Components Location

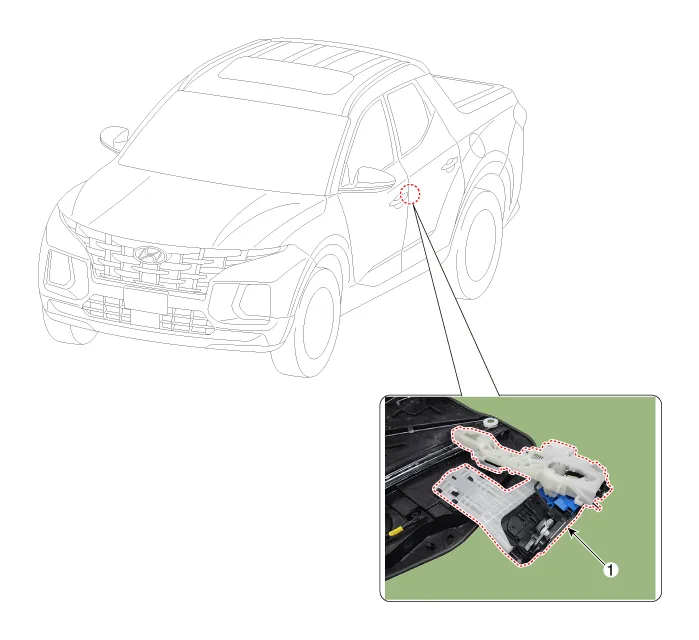

1. Front door latch


- Replacement

1.Remove the front door module.(Refer to Front Door - "Front Door Module")

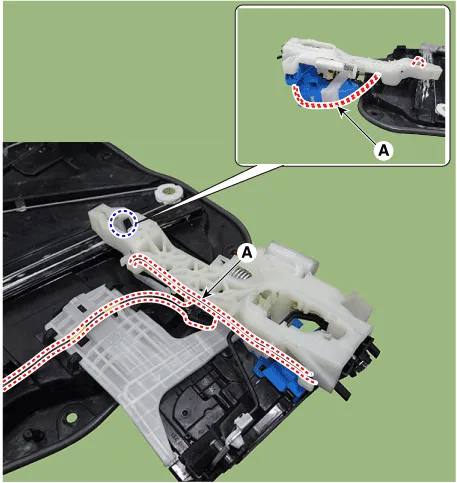

2.Remove the front door inside handle cage (A).

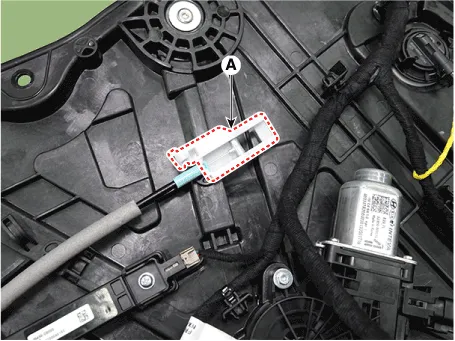

3.Separate the front door outside handle base connector and wiring harness (A).

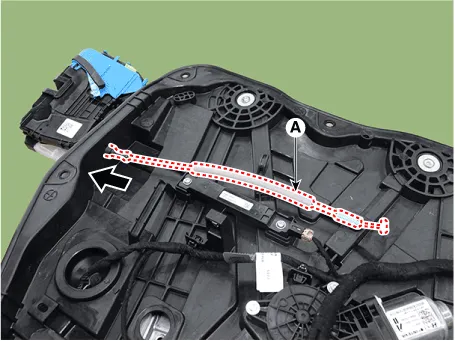

4.Separate the front door inside handle cable (A) by pushing it in the direction of the arrow.

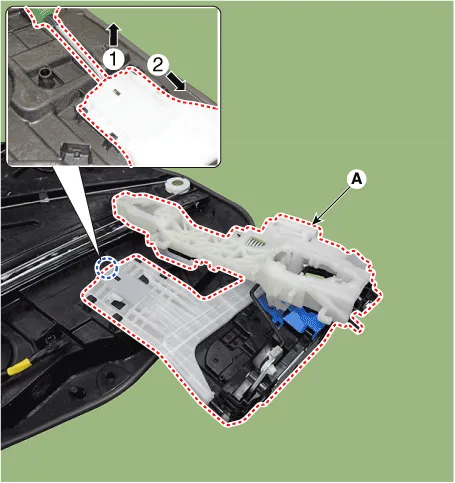

5.Remove the front door latch (A).

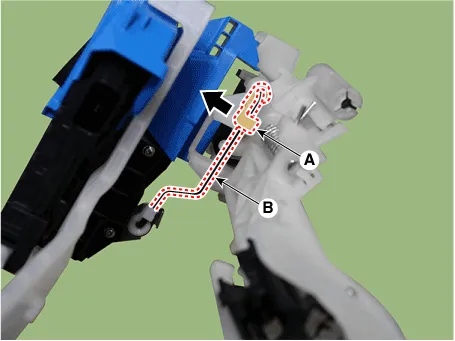

6.Disconnect the lock pin (A) in the direction of the arrow and then separate the connecting rod (B).

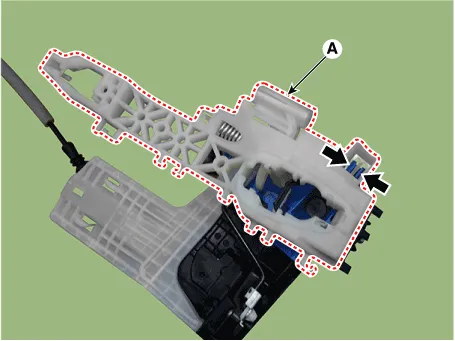

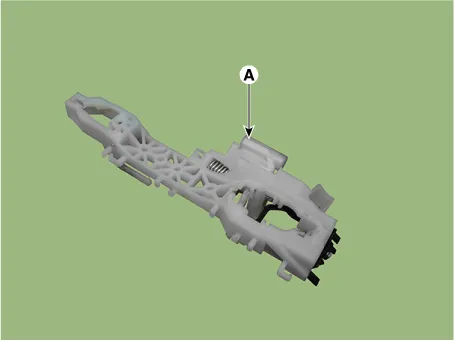

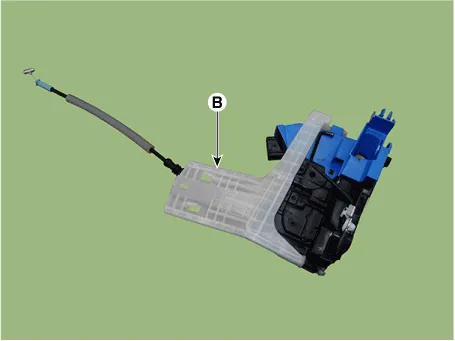

7.Press the lock pin, remove the front door outside handle base braket (A) from the front door latch (B).

8.To install, reverse removal procedure.



• Make sure the connector is connected properly.

• Make sure the door locks / unlocks and opens / closes properly.

• Replace any damaged clips (or pin-type retainers).
