Hyundai Santa Cruz: Rear Glass Defogger / Components and Components Location

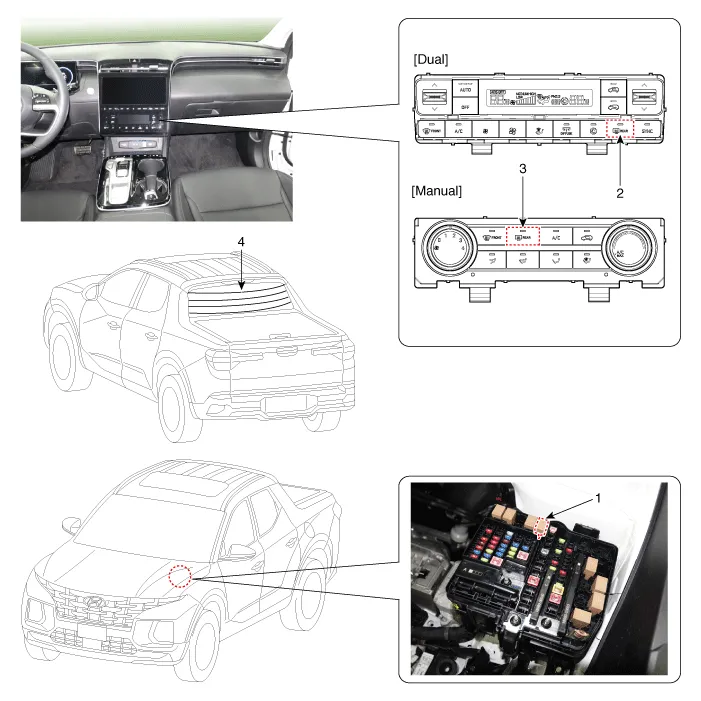

- Component Location

1. Engine room junction block (Buil-in rear glass defogger relay)
2. Rear glass defogger switch (Dual type)
3. Rear glass defogger switch (Manual type)
4. Rear glass defogger


    Rear Glass Defogger
    ...

    Rear Glass Defogger Printed Heater
    - Inspection     Wrap tin foil around the end of the voltmeter test lead to prevent damaging the heater line. Apply finger pressure on the tin foil, moving the tin foil along the ...
