Hyundai Santa Cruz: Rear Seat / Rear Seat Cushion Cover

- Component Location

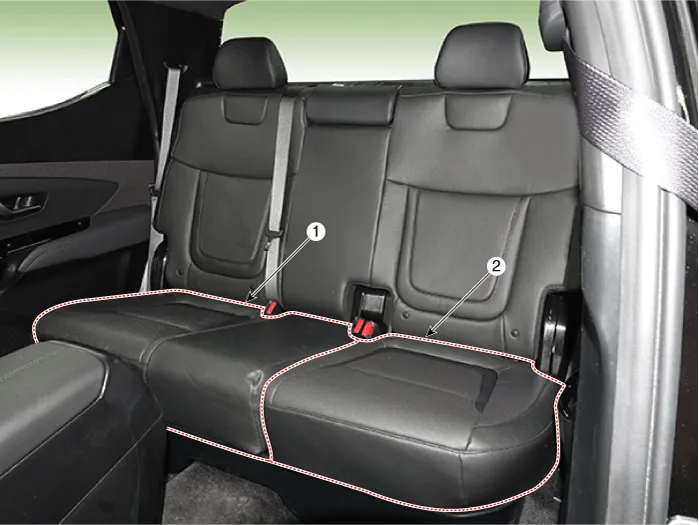

1. Rear seat cushion cover [RH]
2. Rear seat cushion cover [LH]


- Replacement



• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the rear seat assembly.

[LH]

1.Remove the rear seat cushion assembly.(Refer to Rear Seat - "Rear Seat Assembly")

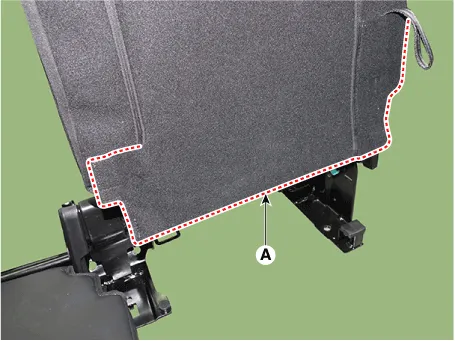

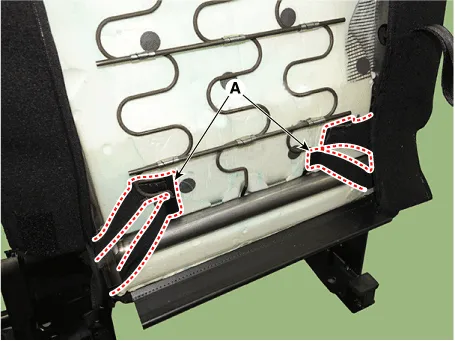

2.Separate the rear seat cushion cover protector (A).

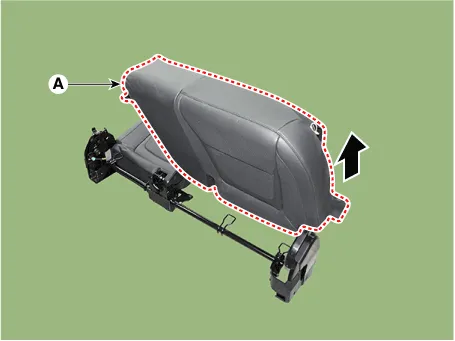

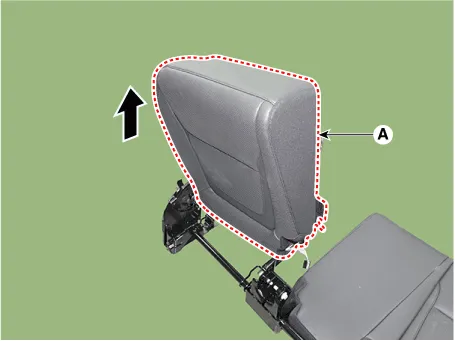

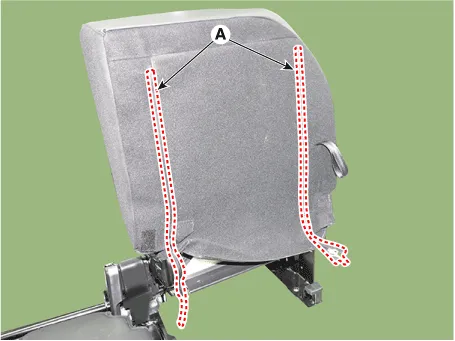

3.Zip off the rear seat back cover (A), and then pull it up.

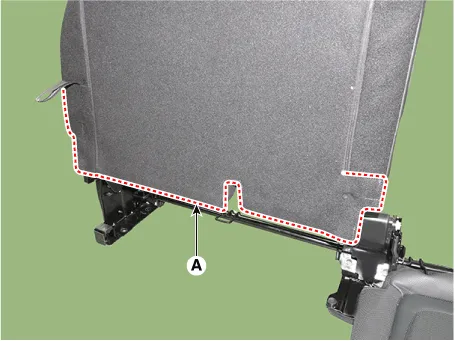

4.Separate the rear seat cushion protector (A).

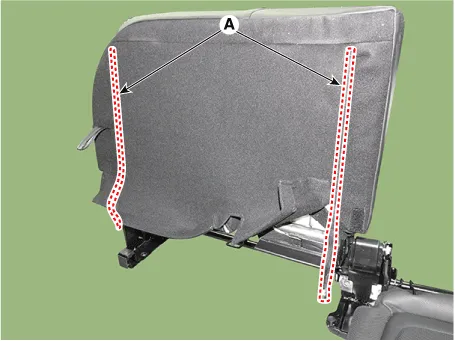

5.Remove the rear seat back cover (A) from the rear seat back frame.

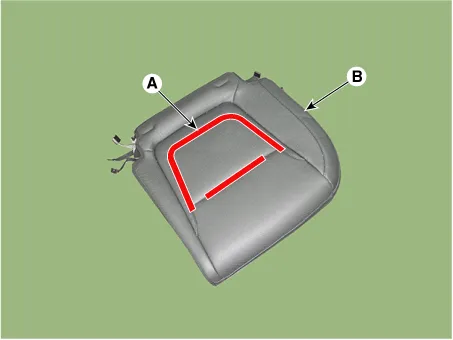

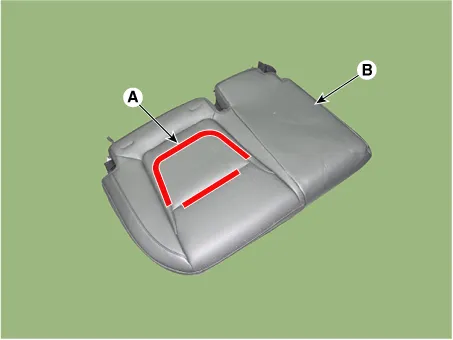

6.After removing the velcro tape (A) inside the front seat cushion cover, remove the seat cushion cover (B).

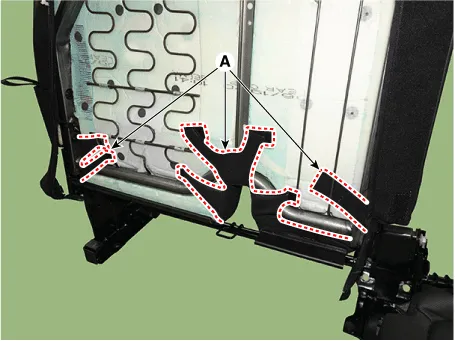

• Be careful not to deviate from the pads, insert wires, and aplix.

7.To install, reverse the removal procedure.



• Make sure that the connectors are connected completely

• Replace any damaged clips (or pin-type retainers).

[RH]

1.Remove the rear seat cushion assembly.(Refer to Rear Seat - "Rear Seat Assembly")

2.Separate the rear seat cushion cover protector (A).

3.Zip off the rear seat back cover (A), and then pull it up.

4.Separate the rear seat cushion protector (A).

5.Remove the rear seat back cover (A) from the rear seat back frame.

6.After removing the velcro tape (A) inside the front seat cushion cover, remove the seat cushion cover (B).



• Be careful not to deviate from the pads, insert wires, and aplix.

7.To install, reverse the removal procedure.



• Make sure that the connectors are connected completely

• Replace any damaged clips (or pin-type retainers).
