Hyundai Santa Cruz: Button Engine Start System / Components and Components Location

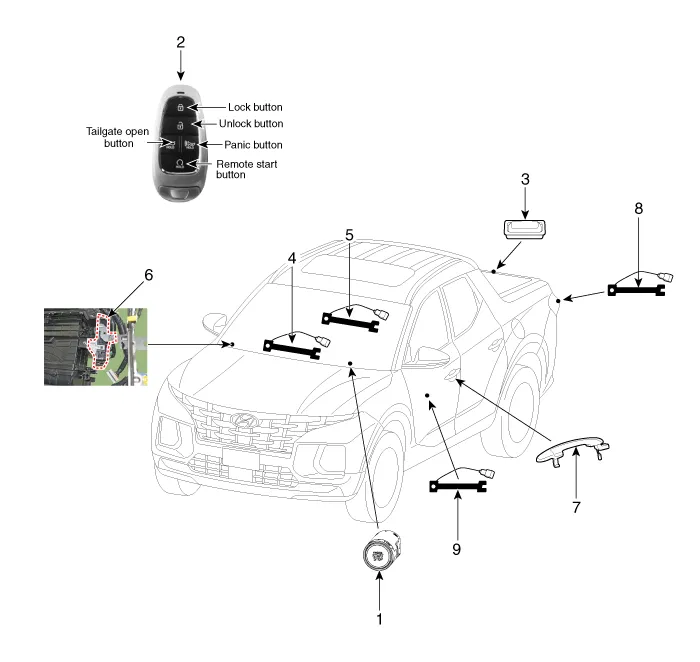

- Component Location

1. Start Stop Button(SSB)
2. FOB Key
3. Tailgate open button
4. Interior antenna 1
5. Interior antenna 2
6. Intergrated Body Control Unit (IBU)
7. Door handle & door antenna
8. Rear Bumper antenna
9. Door antenna


    Description and Operation
    - Description The System offers the following features : • Changing the state of engine ignition and power by using the start button. • Controlling external relays for ACC / IGN1 / IGN2 term ...

    Start/Stop Button
    - Component - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the cluster fascia panel.(Refer to Body - "Cluster Fascia Panel") 3.Remove the front monitor.(Refer to AVN ...
