Hyundai Santa Cruz: Button Engine Start System / Start/Stop Button

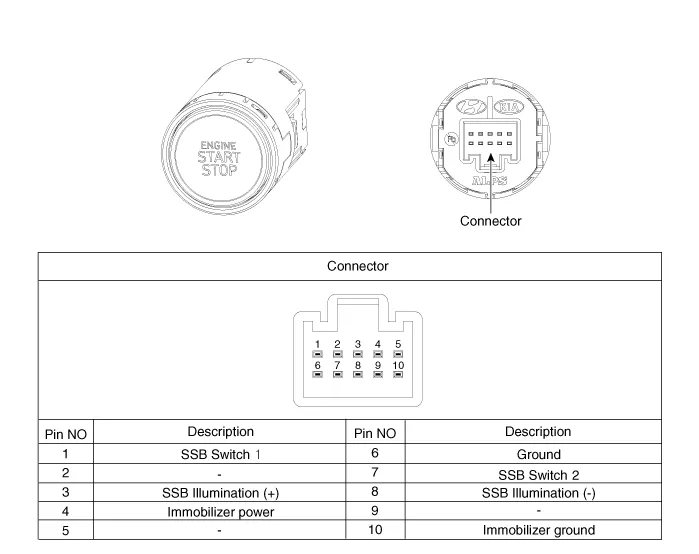

- Component

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the cluster fascia panel.(Refer to Body - "Cluster Fascia Panel")

3.Remove the front monitor.(Refer to AVN System - "Front Monitor")

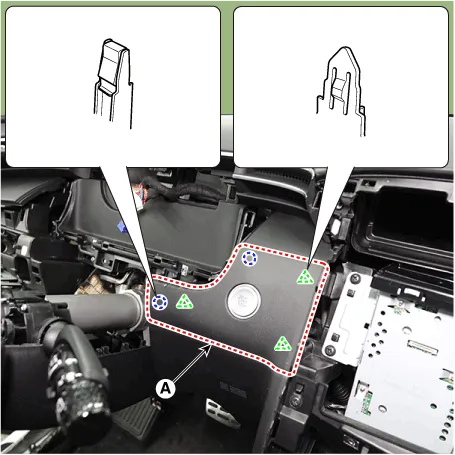

4.Using a remover and remove the crash pad garnish [CTR].

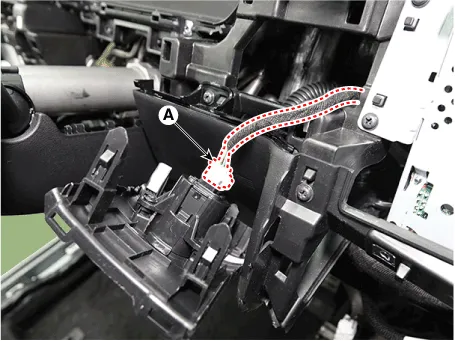

5.Disconnect the start / stop button connector (A).

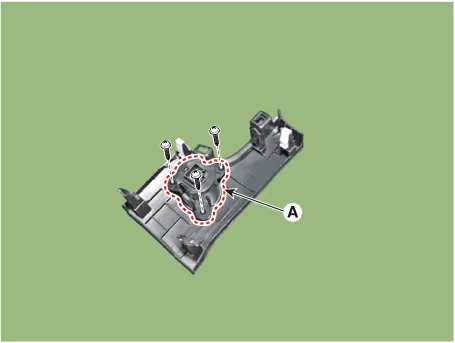

6.Loosen the mounting screws and remove the start / stop button (A).

- Installation

1.Install the start / stop button.

2.Install the crash pad garnish [CTR].

3.Install the front monitor.

4.Install the cluster fascia panel.

    Components and Components Location
    - Component Location 1. Start Stop Button(SSB)2. FOB Key3. Tailgate open button4. Interior antenna 15. Interior antenna 26. Intergrated Body Control Unit (IBU)7. Door handle & door antenna8. ...
