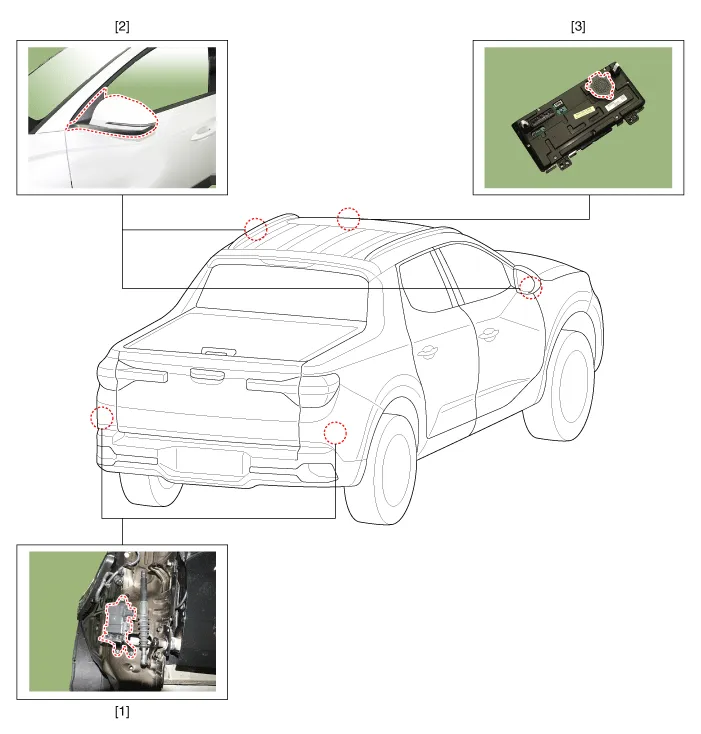

Hyundai Santa Cruz: Rear Corner Radar System / Components and Components Location
1. Rear corner radar
2. Warning indicator
3. Speaker (Cluster)
