Hyundai Santa Cruz: Wireless Power Charger System / Components and Positions

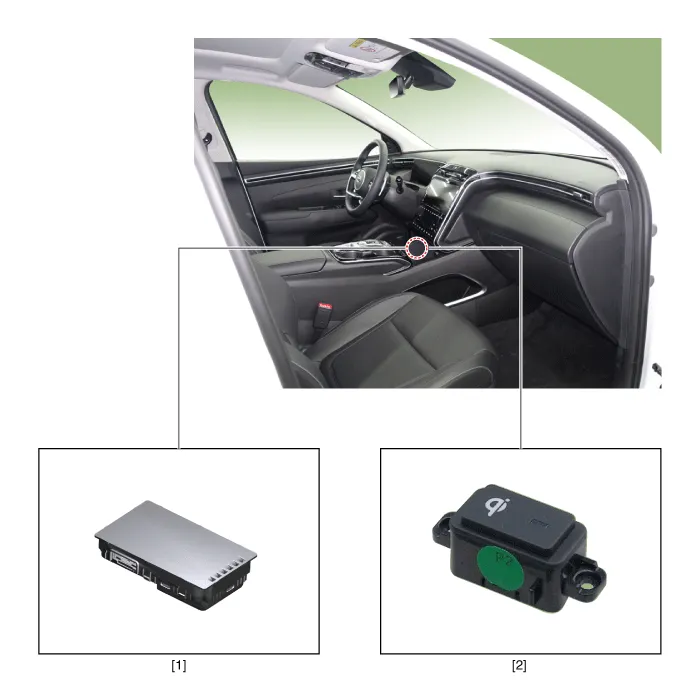

- Components

1. Wireless power charging unit
2. Wireless power charging lamp


    Description and Operating Principle
    - Description and Operation Wireless Power Charger System During ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone. Mobi ...

    Troubleshooting
    - Troubleshooting Wireless Power Charger System Troubleshooting Trouble statusInspection itemInspection Not chargedCheck the mobile phone status R-1 Amber LED blinks OvercurrentR-2 OverheatingR ...
