Hyundai Santa Cruz: Interior Trim / Cowl Side Trim

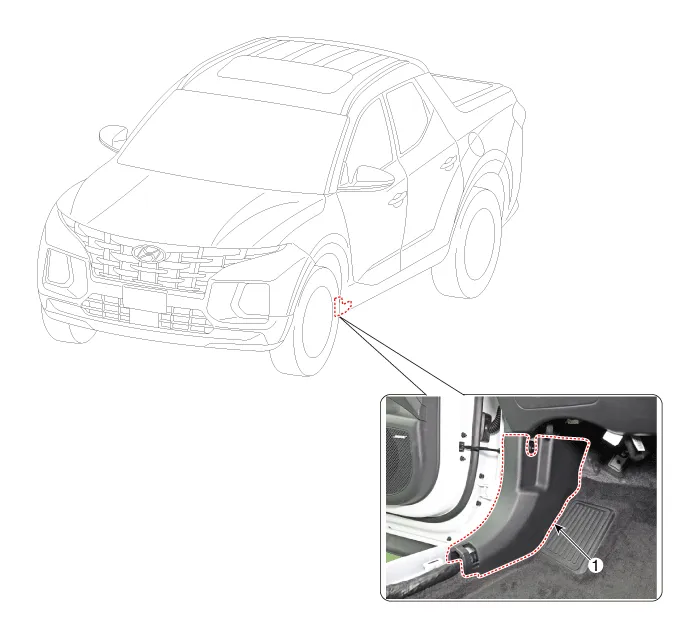

- Component Location

1. Cwol side trim


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Remove the front door scuff trim.(Refer to Interior Trim - "Door Scuff Trim")

2.Remove the hood latch release handle.(Refer to Hood - "Hood Latch Release Handle")

3.Remove the front door body side weatherstrip.(Refer to Front Door - "Front Door Side Weatherstrip")

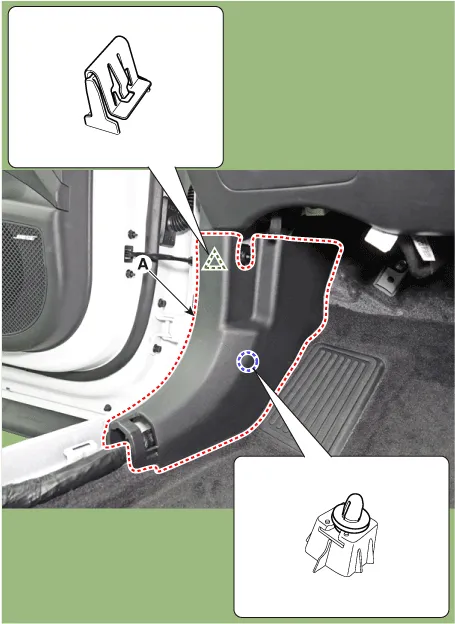

4.Using a screwdriver or remover, remove the cowl side trim (A).

5.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
