Hyundai Santa Cruz: Interior Trim / Door Scuff Trim

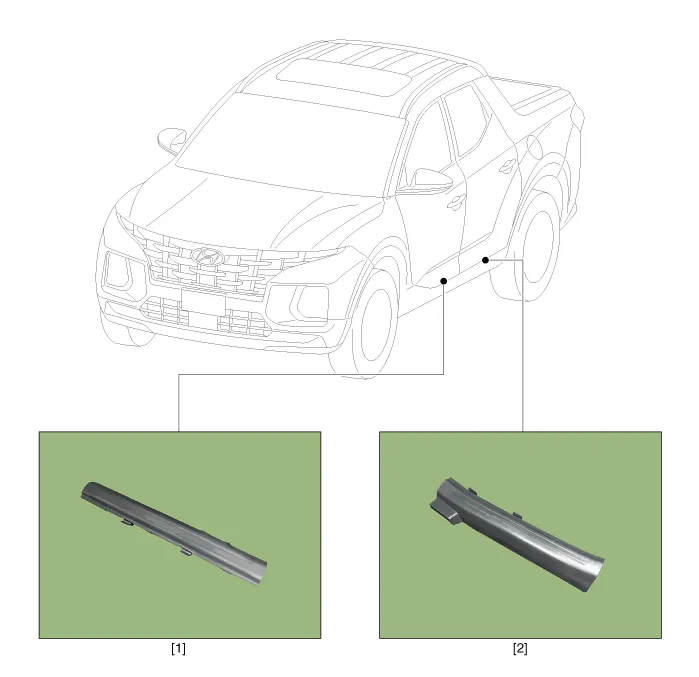

- Component Location

1. Front door scuff trim
2. Rear door scuff trim


- Replacement [Front door scuff trim]



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Remove the front door body side weatherstrip.(Refer to Front Door - "Front Door Side Weatherstrip")

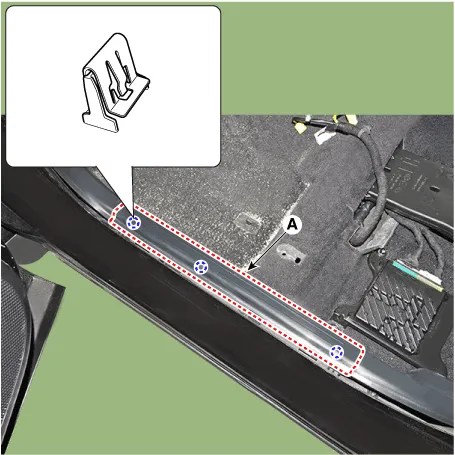

2.Using a screwdriver or remover and remove the front door scuff trim (A).

3.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).

[Rear door scuff trim]



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Remove the rear door body side weatherstrip.(Refer to Rear Door - "Rear Door Side Weatherstrip")

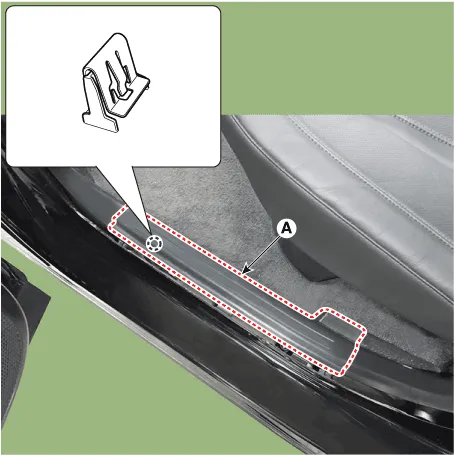

2.Using a screwdriver and remove the rear door scuff trim (A).

3.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
