Hyundai Santa Cruz: Drive Belt System / Crankshaft Damper Pulley

- Removal and Installation

1.Remove the engine room under cover.(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")

2.Remove the drive belt and water pump belt.(Refer to Drive Belt System - "Drive Belt")

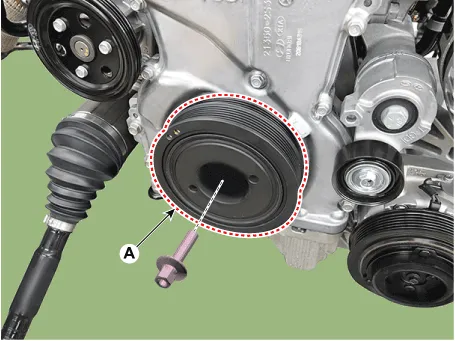

3.Remove the crankshaft damper pulley (A).

Tightening torque :114.7 - 120.6 N.m (11.7 - 12.3 kgf.m, 84.6 - 88.9 Ib.ft) + [68 - 72°]



– Do not apply excessive external force or pressure to the pulley to prevent deformation of the rubber part on the crankshaft damper pulley.

– There are two methods to hold the ring gear when removing the crankshaft damper pulley.

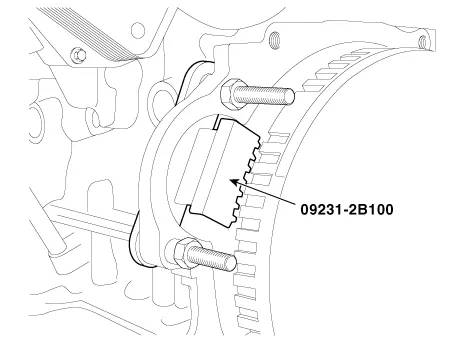

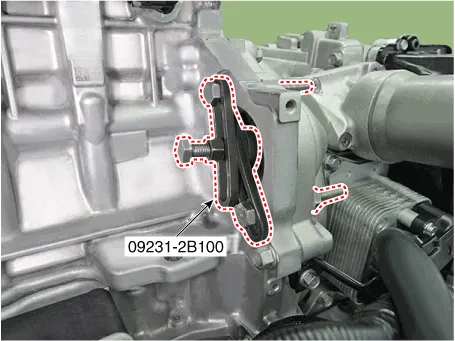

• When installing and removing the crankshaft damper pulley bolts, use SST (09231-2B100) to hold the ring gear after removing the starter.When removing the starter.(Refer to Engine Electrical System - "Starter")

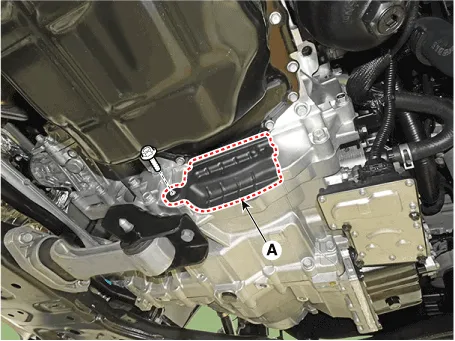

• When installing and removing the crankshaft damper pulley mounting bolts, use SST (09231-3D100) to hold the ring gear after removing the dust cover. (1) Remove the dust cover (A) after removing the transaxle mounting bolt.

Tightening torque :42.1 - 48.0 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 Ib.ft)

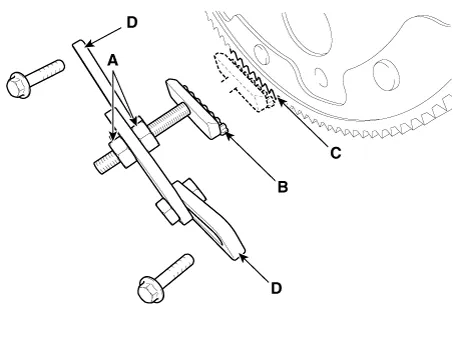

(2) To put the holder (B) in the ring gear (C) teeth, adjust the length of the holder nuts (A). (3) Adjust the angle of the arms (D) so that the two transaxle mounting bolts can be fastened to the original mounted holes.

(4) Fully tighten the bolts and nuts for SST (09231-3D100).

4. Install in the reverse order of removal.
