Hyundai Santa Cruz: Where are the Air Bags? / Curtain air bags

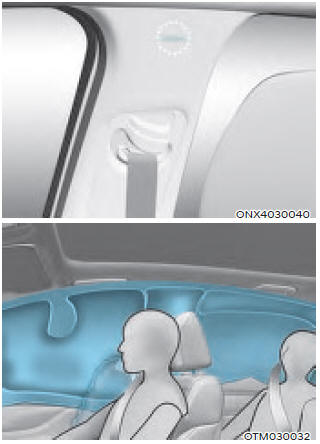

Curtain air bags are located along both sides of the roof rails above the front and rear doors.

They are designed to help protect the heads of the front seat occupants and the rear outboard seat occupants in certain side impact collisions.

The curtain air bags are designed to deploy during certain side impact collisions, depending on the crash severity.

For vehicles equipped with a rollover sensor the side and/or curtain air bags and pre-tensioners on both sides of the vehicle may deploy if a rollover or possible rollover is detected.

The curtain air bags are not designed to deploy in all side impact or rollover situations.

WARNING

To reduce the risk of serious injury or death from an inflating curtain air bag, take the following precautions:

  • All seat occupants must wear seat belts at all times to help keep occupants positioned properly.
  • Properly secure Child Restraint System as far away from the door as possible.
  • Do not place any objects over the air bag. Also, do not attach any objects around the area the air bag inflates such as the door, side door glass, front and rear pillar, roof side rail.
  • Do not hang other objects except clothes, especially hard or breakable objects. In an accident, it may cause vehicle damage or personal injury.
  • Do not allow passengers to lean their heads or bodies onto doors, put their arms on the doors, stretch their arms out of the window, or place objects between the doors and seats.
  • Do not open or repair the side curtain air bags.
    Side air bags
    Your vehicle is equipped with a side air bag in each front seat. The purpose of the air bag is to provide the vehicle’s driver and the front passenger with additional protection than that offer ...

    How does the SRS Air Bag System Operate?
    The SRS consists of the following components: (1) Driver's front air bag module (2) Passenger's front air bag module (3) Side air bag modules (4) Curtain air bag modules (5) Retractor pre-tensioner ...
