Hyundai Santa Cruz: ESC (Electronic Stability Control) System / Downhill Brake Control Swtich

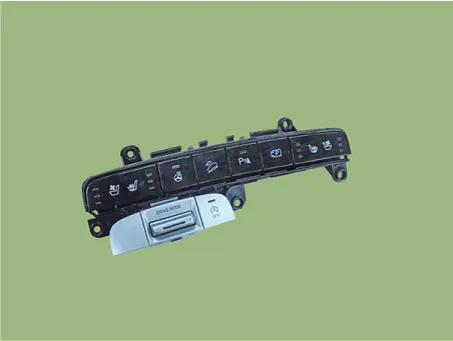

- Description The DBC function is the acronym word of Downhill Brake Control function. When a vehicle goes down the hill, just pushing the DBC switch enables the car to keep its vehicle's speed at a constant value without operating the brake pedal. The DBC function is operat]ed when the vehicle is on the decline and its velocity is under the predetermined speed. - Removal

1.Disconnect the battery negative ( - ) terminal.

2.Remove the floor console upper cover.(Refer to Body - "Floor Console Assembly")

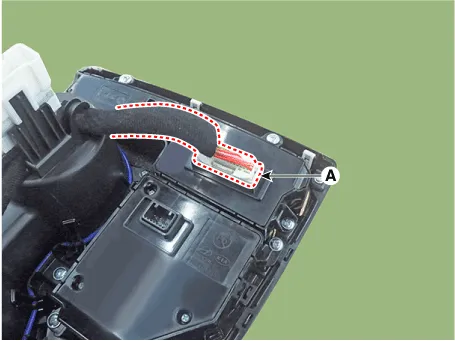

3.Disconnect the floor console upper cover switch connector (A).

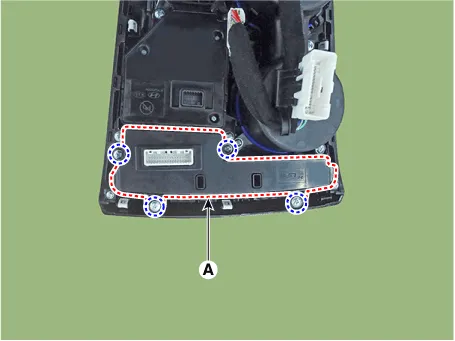

4.Remove the screws and remove the floor console upper cover switch (A).

- Installation

1.Install in the reverse order of removal.
