Hyundai Santa Cruz: Gauges and Meters / Engine coolant temperature gauge
.jpg)

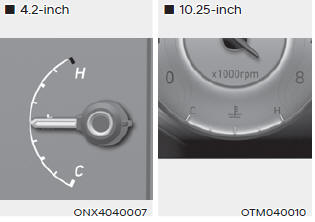

This gauge indicates the temperature of the engine coolant when the ignition switch is in the ON position.
NOTICE
If the gauge pointer moves beyond the normal range area toward the H (or HOT) position, it indicates overheating that may damage the engine. Do not continue driving with an overheated engine. If your vehicle overheats, refer to “If the Engine Overheats” section in chapter 8.
WARNING
Never remove the engine coolant reservoir cap when the engine is hot. The engine coolant is under pressure and could cause a severe burn or injury. Wait until the engine is cool before adding coolant to the reservoir.
Tachometer
The tachometer indicates the
approximate number of engine
revolutions per minute (RPM).
Use the tachometer to select the correct
shift points and to prevent lugging and/
or over-revving the engi ...
Fuel gauge
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
Information
The fuel tank capacity is given in
chapter 2.
The fuel gauge is supplemented by
a low fuel warning ...
