Hyundai Santa Cruz: Cylinder Block / Fly Wheel

- Removal and Installation

1.Remove the dual clutch transmission assembly.(Refer to Dual Clutch Transmission System - "Dual Clutch Transmission System")

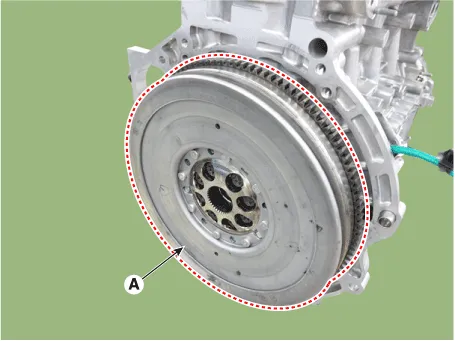

2.Remove the fly wheel (A).

Tightening torque :127.5 - 137.3 N.m (13.0 - 14.0 kgf.m, 94.0 - 101.3 lb-ft)



• Always use the new fly wheel mounting bolts.

3.Install in the reverse order of removal.

    Water Jacket Insert
    - Removal and installation 1.Remove the cylinder head.(Refer to the Cylinder Head Assembly - "Cylinder Head") 2.Remove the water jacket insert (A).     • When removing the w ...

    Rear Oil Seal
    - Replacement 1.Remove the dual clutch transmission assembly.(Refer to Dual Clutch Transmission System - "Dual Clutch Transmission System") 2.Remove the fly wheel.(Refer to Cylinder Block - "Fly ...
