Hyundai Santa Cruz: Cylinder Block / Rear Oil Seal

- Replacement

1.Remove the dual clutch transmission assembly.(Refer to Dual Clutch Transmission System - "Dual Clutch Transmission System")

2.Remove the fly wheel.(Refer to Cylinder Block - "Fly Wheel")

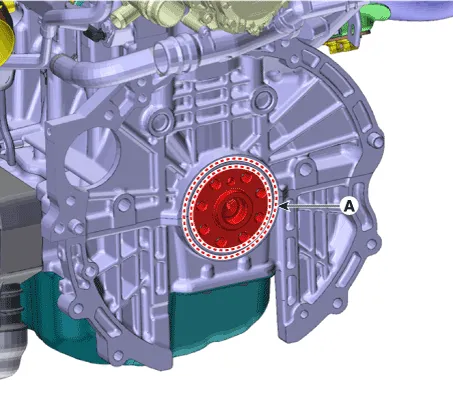

3.Remove the rear oil seal (A).

4.Apply engine oil to a new oil seal lip.

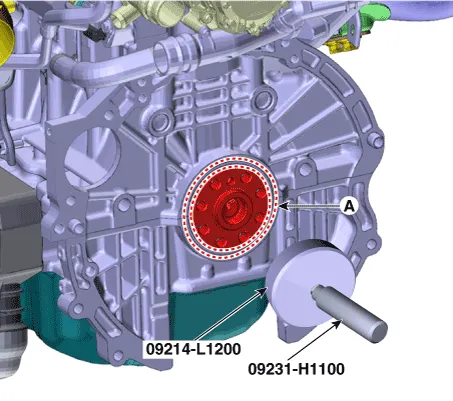

5.Using the SST (09231-H1100, 09214-L1200), install the new rear oil seal (A).



• Do not reuse the rear oil seal.

6.Install in the reverse order of removal.
