Hyundai Santa Cruz: Fuses And Relays / Relay Box (Passenger Compartment)

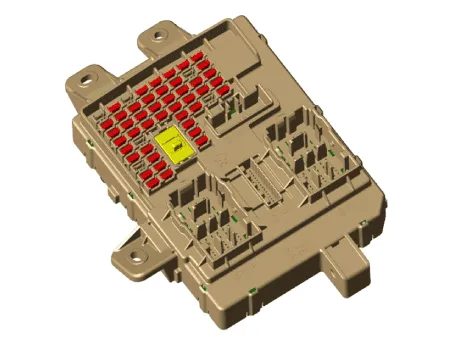

- Dscription and Operation ICU (Integrated Central Control Unit) ICU (Integrated Central Control Unit) is an integrated model of smart junction block and central gateway. It performs the function of conventional "Smart junction block" and the function of communication medium of "Central Gateway".

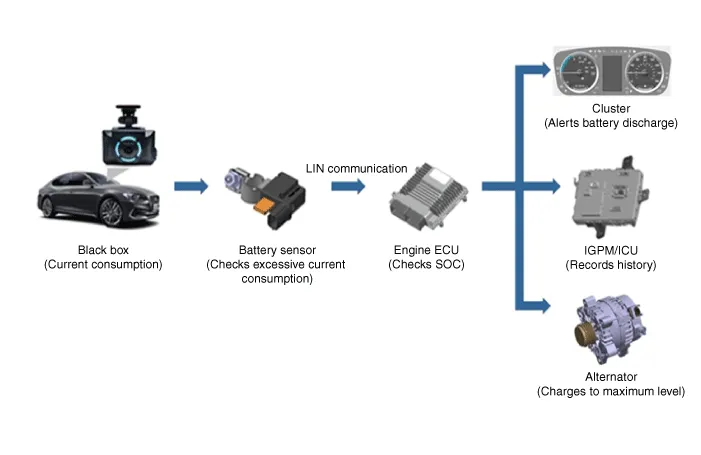

Battery Monitoring System When the risk of battery discharge is detected due to excessive current consumption from using electrical device such as black box while the engine is OFF. The system warns the customer of battery discharge through the warning message on the cluster. The battery sensor detects the excessive current consumption of the battery and the Integrated Central control Unit (ICU) records the battery discharge history.When the battery discharge is detected, the message warning the customer is displayed on the cluster and the battery is charged using the alternator when the engine is driven. The recorded history can be checked via optional diagnostic tool function: "Check the battery discharge warning history".

Checking the battery discharge warning history

– This function allows checking the history of excessive battery consumption of the parked vehicle.

– It is possible to check the running distance and SOC when the battery consumption was excessive and the current SOC information.

Using diagnostic tool, the "Check the battery discharge warning history" function of ICU is implemented.

1.Procedure for coding variants

(1)You should read the specification information for the front view camera that is installed in the vehicle before replacing it with a new front view camera.

(2)Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the diagnostic tool.

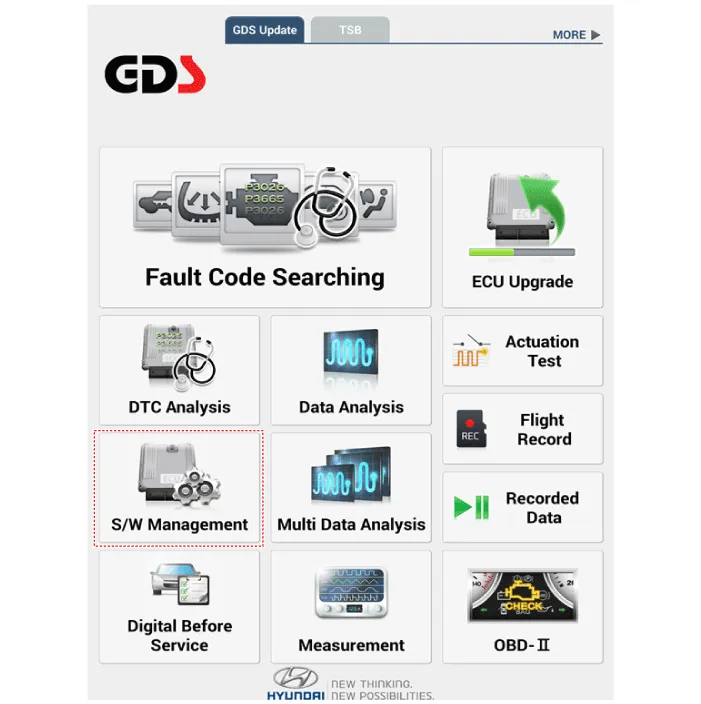

(3)Select the 'S/W Management' and 'Car model'.

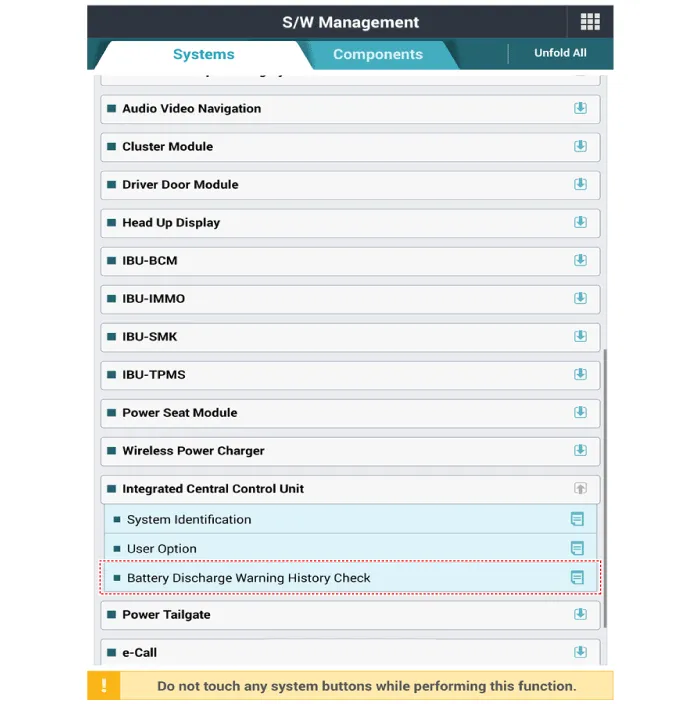

(4)Select the "Integrated Central Control Unit" and "Battery Discharge Warning History Check".

- Fuse Inspection

1.Check that the fuse holders are loosely held and that the fuses are securely fixed by the holders.

2.Check that each fuse circuit has the exact fuse capacity.

3.Check the fuses for any damage.



• If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always identify the cause of the blown fuse and completely eliminate the problem before installing a new fuse.

Diagnosis with Diagnostic Tool

1.In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).The diagnostic system(diagnostic tool) provides the following information.

(1)The diagnostic system(diagnostic tool) provides the following information.

(2)Data Analysis : Checking the system input/output data state

(3)Actuation test : Checking the system operation condition

(4)S/W Management : Controlling other features including system option setting and zero point adjustment

2.If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".

3.If check current status, select the "Data Analysis" and "Car model".

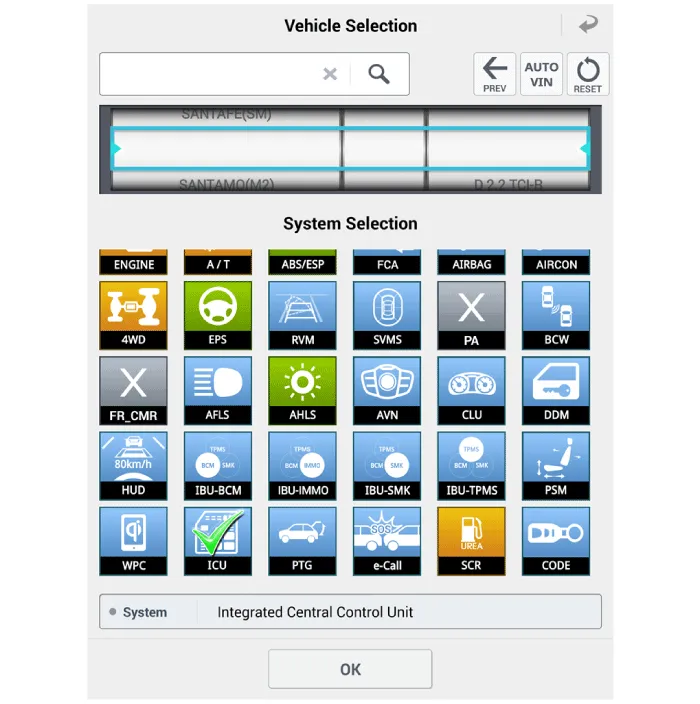

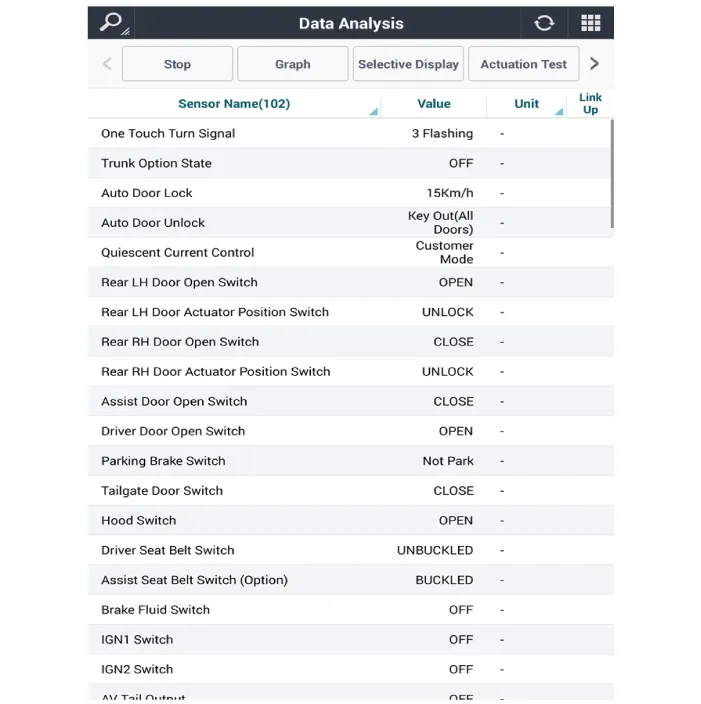

4.Select the 'ICU' to search the current state of the input/output data.

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel")

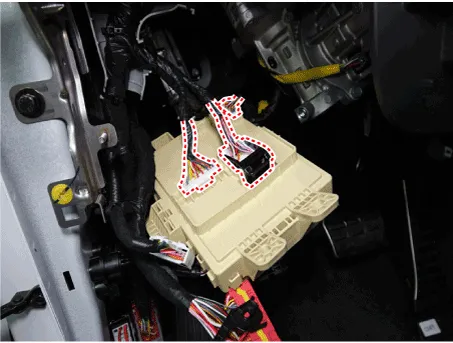

3.Disconnect the connectors from the front side of the ICU.

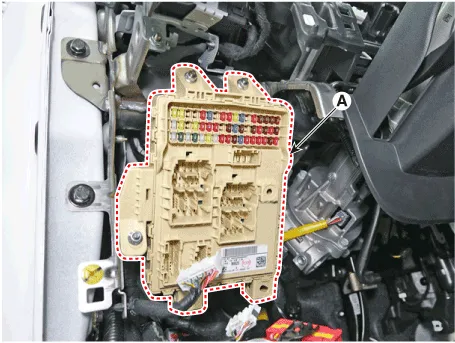

4. Remove the ICU (A) after loosening mounting nuts.

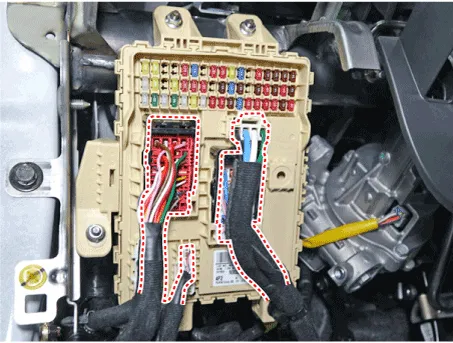

5.Disconnect the connectors from the back side of the ICU.

- Installation

1.Install the ICU.

2.Install the crash pad lower panel.

3.Connect the negative (-) battery terminal.
