Hyundai Santa Cruz: Front Door / Front Door Belt Inside Weatherstrip

- Replacement

1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")

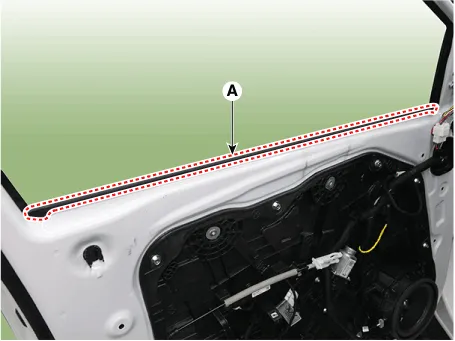

2.Remove the front door belt inside weatherstrip (A).

3.To install, reverse removal procedure.



• When installing, install it by first contacting the inside part.
