Hyundai Santa Cruz: Front Door / Front Door Inside Handle

- Replacement

1.Disconnect the negative ( - ) battery terminal.

2.Remove the front door trim.(Refer to Front Door - "Front Door Trim")

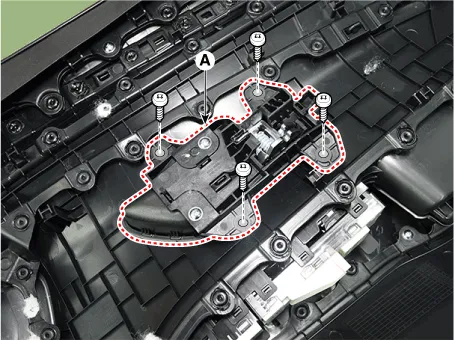

3.Loosen the mounting screws and remove the front door inside handle (A).

4.To install, reverse removal procedure.



• Make sure the door locks / unlocks and opens / closes properly.
