Hyundai Santa Cruz: Body Side Molding / Rear Spoiler

- Component Location

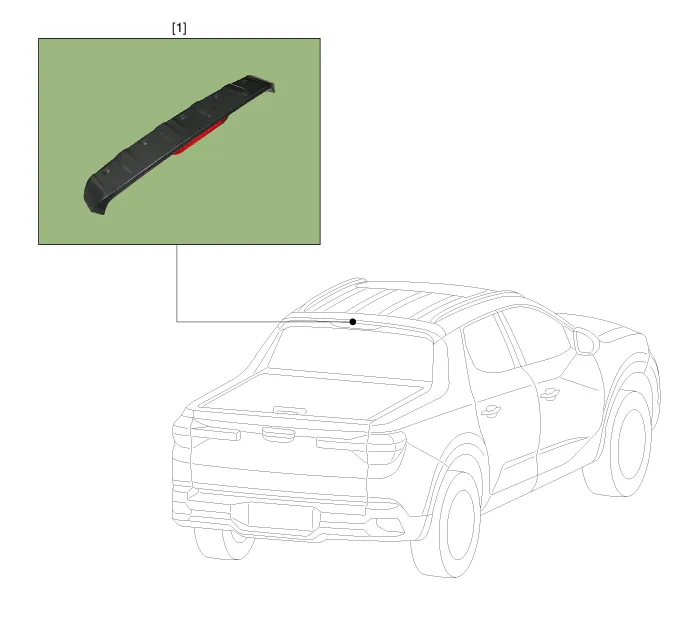

1. Rear Spoiler

- Replacement

• When removing with a flat-head screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

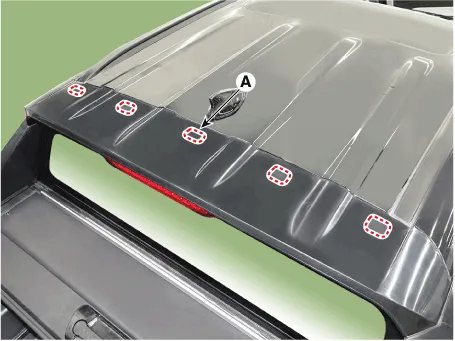

1.Remove the rear spoiler caps (A).

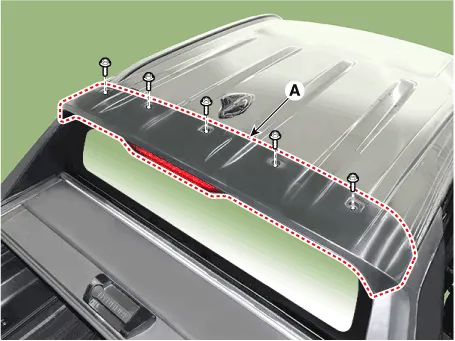

2.Loosen the mounting bolts, remove the rear spoiler (A).

Tightening torque :8.8 - 12.7 N.m (0.9 - 1.3 kgf.m, 6.5 - 9.4 lb-ft)

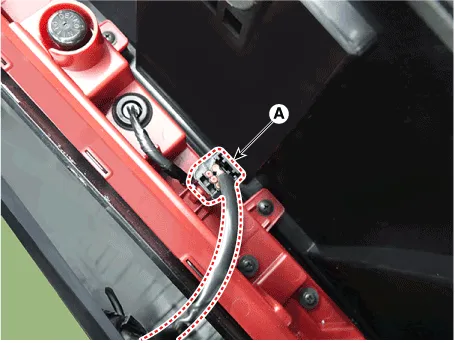

3.Disconnect the rear spoiler connector (A).

4.To install, reverse the removal procedure.

• Make sure the connector is connected properly.

• Replace any damaged clips (or pin-type retainers).
