Hyundai Santa Cruz: Body Side Molding / Roof Rack

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Remove the roof trim.(Refer to Roof Trim - "Roof Trim Assembly")

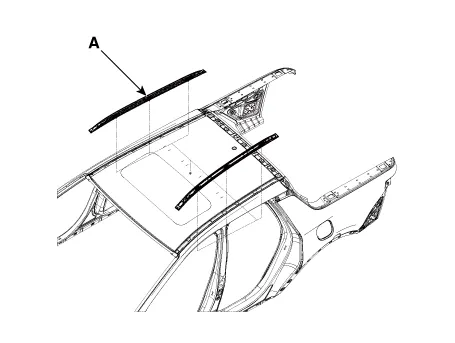

2.Loosen the nuts and remove the roof rack assembly (A).

Tightening torque :10.2 - 15.3 N.m (1.0 - 1.6 kgf.m, 7.5 - 11.3 lb-ft)

3.To install, reverse the removal procedure.
