Hyundai Santa Cruz: Front Seat / Front Seat Assembly

- Component Location

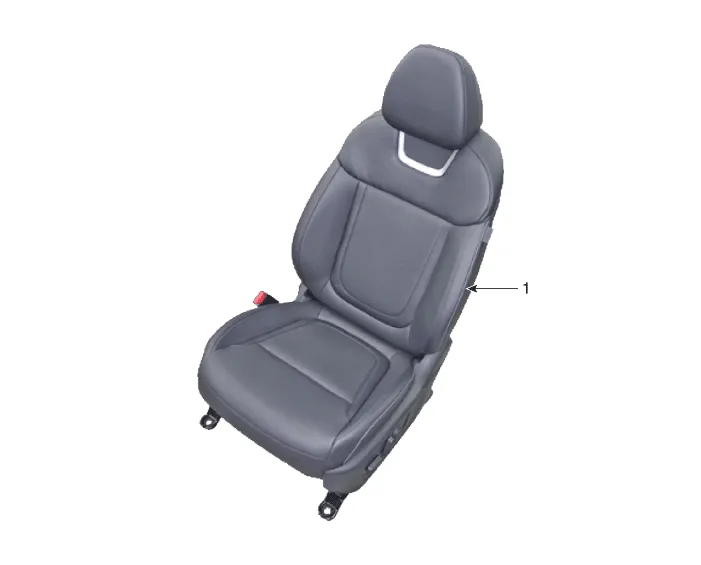

1. Front seat assembly


- Replacement

1.Disconnect the negative (-) battery terminal.

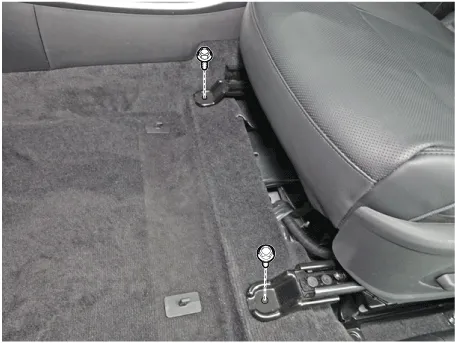

2.Open the cover and loosen the front seat mounting bolts.[Front]

Tightening torque: 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

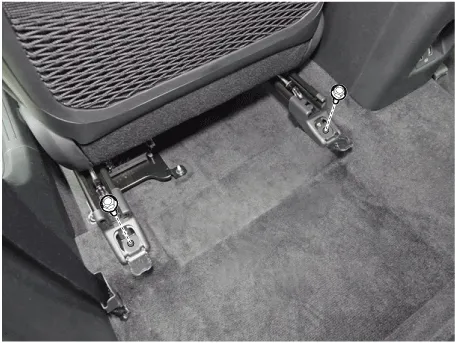

[Rear]

Tightening torque: 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

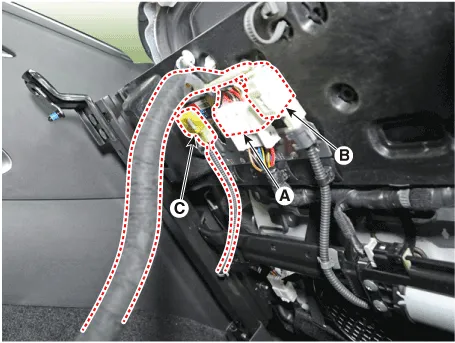

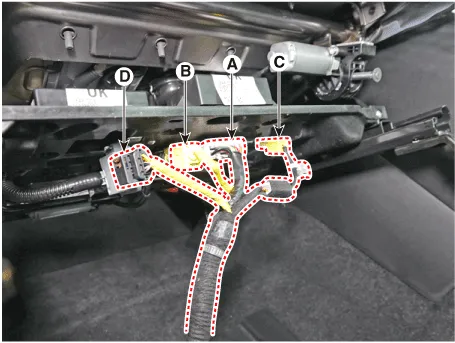

3.Disconnect the main connector (A) , side airbag connector (B) , front seat belt buckle connector (C) and OCS connector (D).[LH]

[RH]

4.To install, reverse removal procedure.



The installation procedures of seat mounting bolts

• Push the seat to the rear end of slides and initially tighten the front mounting bolts.

• Push the seat to the front end of slides and completely tighten the rear mounting bolts.

• Send the seat to the rear end again to completely tighten the front mounting bolts.

• Check the seat for smooth movement.

• For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
