Hyundai Santa Cruz: Front Seat Belt / Front Seat Belt Pretensioner

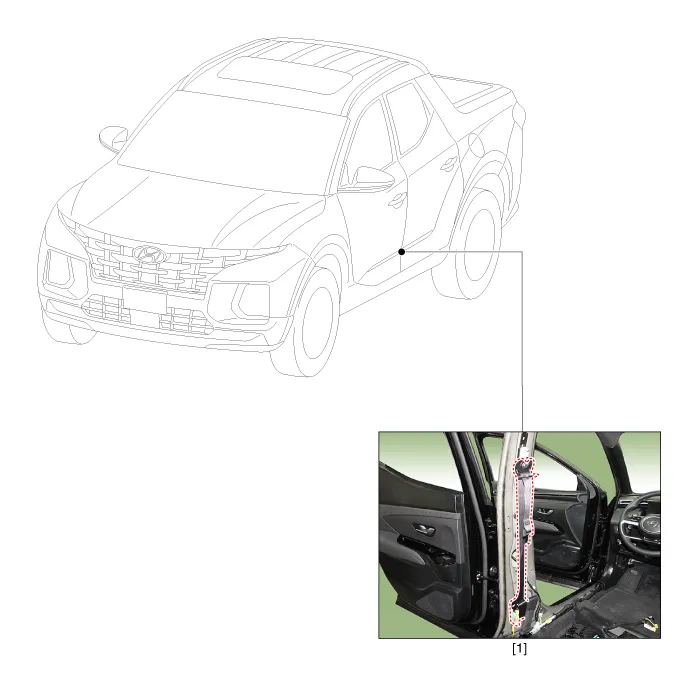

- Component Location

1. Front seat belt pretensioner


- Replacement



• When installing the belt, make sure not to damage the pretensioner.

1.Disconnect the negative (-) battery terminal.

2.Remove the center pillar upper trim.(Refer to Interior Trim - "Center Pillar Trim")

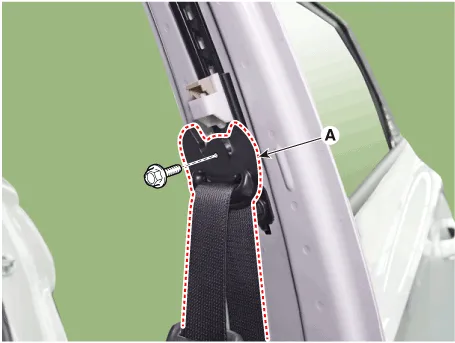

3.Loosen the mounting bolt and remove the front seat belt upper anchor (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

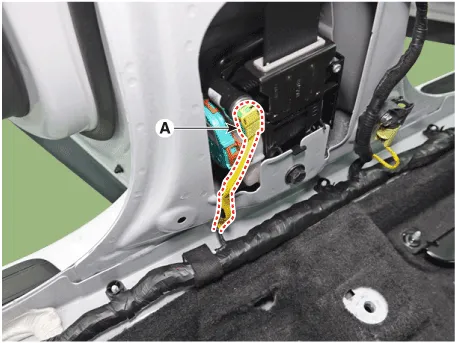

4.Press the lock pin and separate the front seat belt pretensioner connector (A).

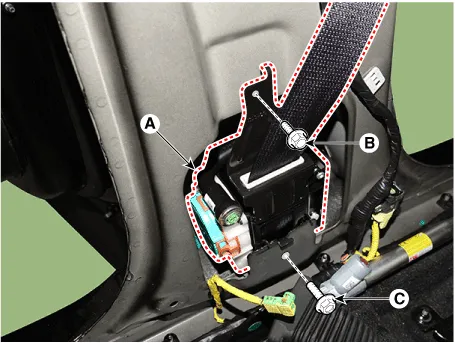

5.Loosen the mounting bolt and remove the front seat belt pretensioner (A).

Tightening torque :Bolt B : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m , 5.8 - 8.7 lb-ft)Bolt C : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

6.To install, reverse removal procedure.



• When installing the connector, be sure to insert it to the anchor pretensioner until "click" sound is heard and then check it for secure installation by pulling it.

• After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.

• Make sure the connector is plugged in properly.

• Replace any damaged clips (or pin-type retainers).

    Front Seat Belt
    ...

    Height Adjust
    - Component Location 1. Height adjust - Replacement 1.Remove the front seat belt upper anchor.(Refer to Front Seat Belt - "Front Seat Belt Pretensioner") 2.After loosening the mounting ...
