Hyundai Santa Cruz: Front Seat Belt / Height Adjust

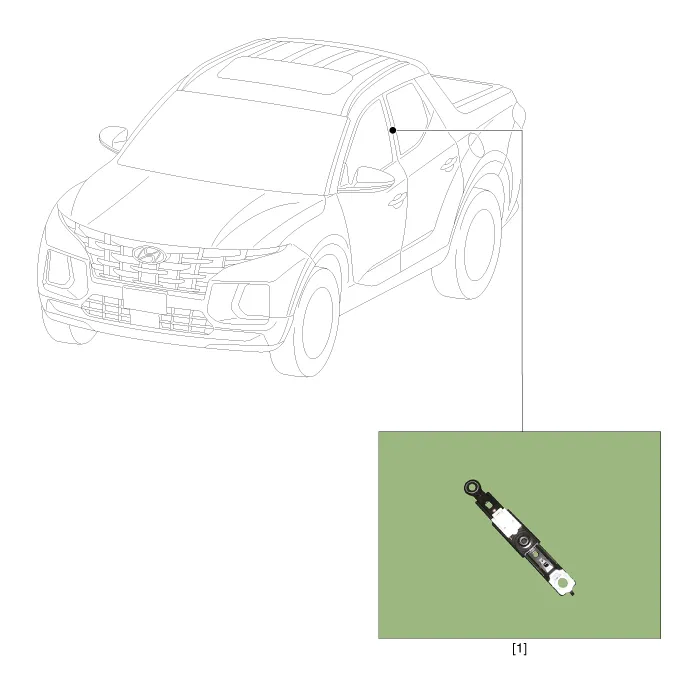

1. Height adjust
1.Remove the front seat belt upper anchor.(Refer to Front Seat Belt - "Front Seat Belt Pretensioner")

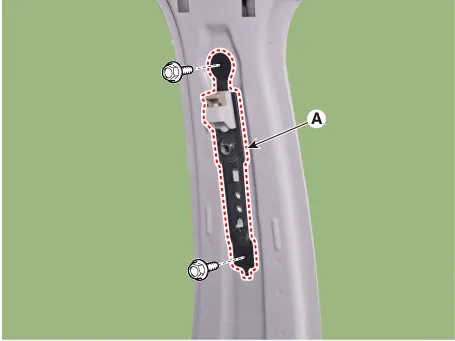

2.After loosening the mounting bolts, then remove the height adjust (A).
Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)
3.To install, reverse removal procedure.
• Replace any damaged clips (or pin-type retainers).
Front Seat Belt Pretensioner
- Component Location
1. Front seat belt pretensioner
- Replacement
• When installing the belt, make sure not to damage the pretensioner.
1.Disconnect the negativ ...
Front Seat Belt Buckle
- Component Location
1. Front seat belt buckle
- Replacement
1.Remove the front seat assembly.(Refer to Front Seat - "Front Seat Assembly")
2.After loosening the mounting bolt, then r ...
