Hyundai Santa Cruz: Front Seat Belt / Front Seat Belt Buckle

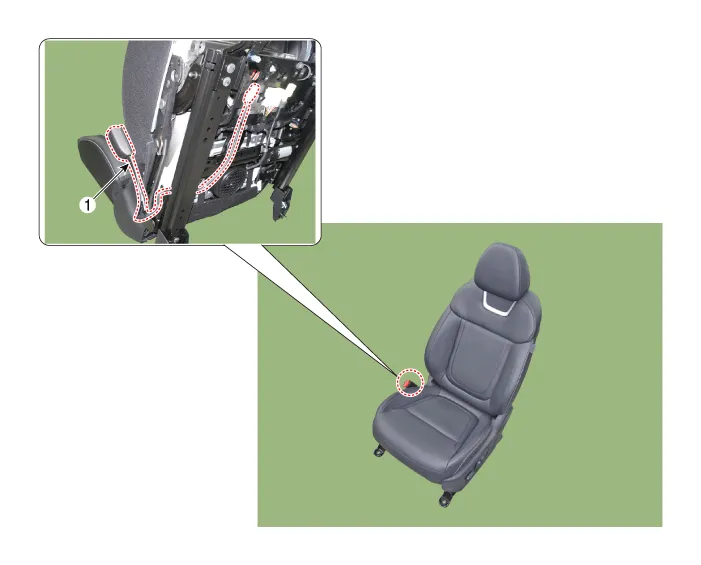

- Component Location

1. Front seat belt buckle


- Replacement

1.Remove the front seat assembly.(Refer to Front Seat - "Front Seat Assembly")

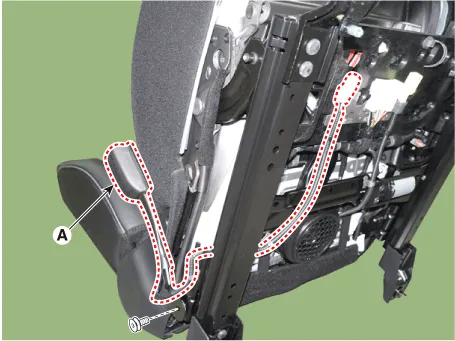

2.After loosening the mounting bolt, then remove the front seat belt buckle (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

3.To install, reverse removal procedure.



• Make sure the connector is plugged in properly.
