Hyundai Santa Cruz: Convenient Features / High Beam Assist (HBA)

High Beam Assist will automatically switch between high beam and low beam depending on the detected brightness from the lamps of oncoming vehicles or vehicles in front.

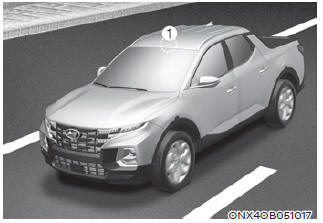

Detecting sensor

[1] : Front view camera

The front view camera is used as a detecting sensor to detect ambient light and brightness while driving.

Refer to the picture above for the detailed location of the detecting sensor.

NOTICE

  • Always keep the front view camera in good condition to maintain optimal performance of High Beam Assist.
  • For more details on the precautions of the front view camera, refer to “Forward Collision-Avoidance Assist (FCA)” section in chapter 7.
