Hyundai Santa Cruz: Hood / Hood Assembly

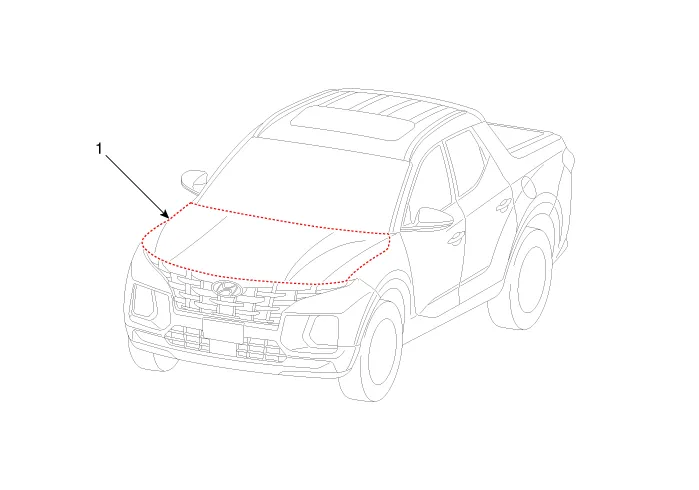

- Component Location

1. Hood assembly


- Replacement



• Wear gloves to protect hands from injury.



• Be careful not to damage the hood and body.



• When removing and installing the tailgate, an assistant is needed.

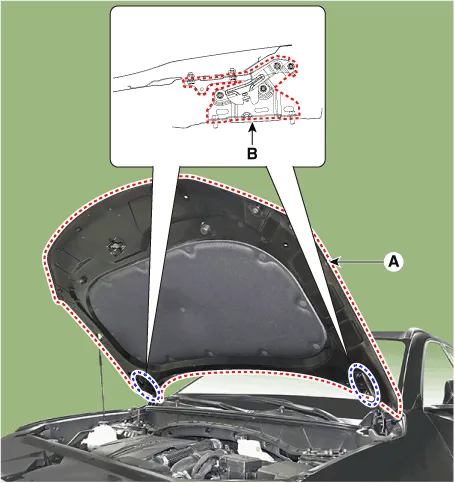

1.After loosening the hood hinge (B) mounting bolts, remove the hood assembly (A).

Tightening torque : 21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

2.To install, reverse removal procedure.



• Make sure the hood locks / unlocks and opens / closes properly.

• Adjust the hood alignment. (Refer yo Hood - Repair procedures")

    Repair procedures
    - Adjustment 1.After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up and down or from side to side and tighten the bolt. 2.Adjust the hood height by moving the hood o ...

    Hood Insulator Pad
    - Replacement     • Be careful not to scratch the hood panel. 1.Using a clip remover, remove the clips and then the hood insulator pad (A). 2.To install, reverse removal pro ...
