Hyundai Santa Cruz: Hood / Hood Insulator Pad

- Replacement



• Be careful not to scratch the hood panel.

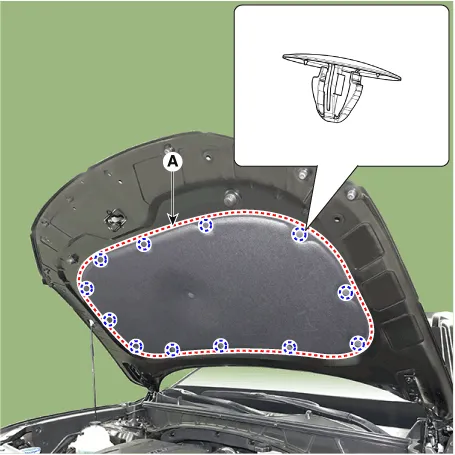

1.Using a clip remover, remove the clips and then the hood insulator pad (A).

2.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).

    Hood Assembly
    - Component Location 1. Hood assembly - Replacement     • Wear gloves to protect hands from injury.     • Be careful not to damage the hood and bo ...

    Hood Weatherstrip
    - Replacement     • Be careful not to scratch the hood weatherstrip. 1.Remove the hood weatherstrip (A). 2.To install, reverse removal procedure.     • Repl ...
