Hyundai Santa Cruz: Hood / Hood Weatherstrip

- Replacement



• Be careful not to scratch the hood weatherstrip.

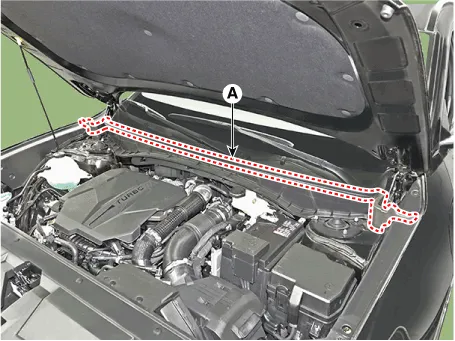

1.Remove the hood weatherstrip (A).

2.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
