Hyundai Santa Cruz (NX4A OB) 2021-2025 Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / In-car Sensor

Hyundai Santa Cruz: Air Conditioning System / In-car Sensor

- Description The In-car air temperature sensor is built in the heater & A/C control unit.The sensor consists of a thermistor that measures the inside temperature. The signal decided by the resistance value that changes in accordance with perceived inside temperature, is delivered to heater control unit, and according to this signal, the control unit regulates in-car temperature to intended value. - Components Location

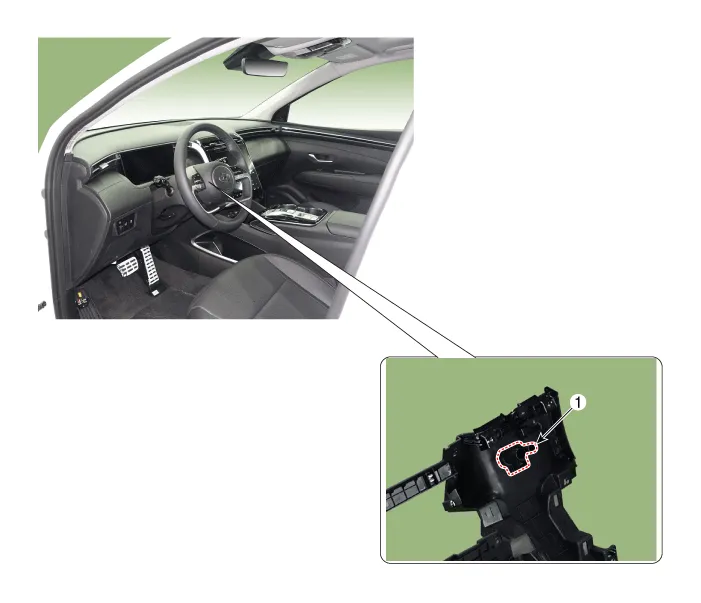

1. In-car sensor

- Replacement

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad center panel.(Refer to Body (Interior and Exterior) - "Crash Pad Center Panel")

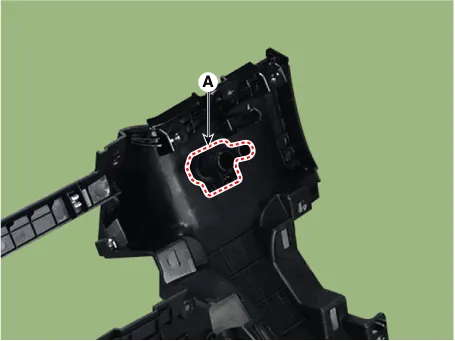

3.Using a screwdriver or remover, remove the in-car sensor (A).

4.Install in the reverse order of removal.

• Replace any damaged clips (pin-type retainers).

• Make sure that each of the assembly components operates properly.
