Hyundai Santa Cruz: Driving Convenience / Lane Following Assist (LFA)
Lane Following Assist is designed to detect lane markings on the roadway and/or a vehicle directly in front and automatically provides steering inputs to help keep your vehicle centered in the lane or following the vehicle in front of you.
Detecting sensor
.jpg)

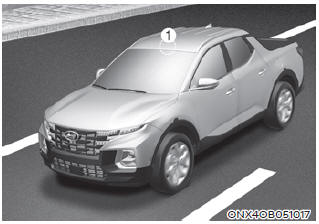

[1] : Front view camera
The front view camera is used as a detecting sensor to help detect lane markings and vehicles in front.
Refer to the picture above for the detailed location of the detecting sensor.
CAUTION
For more details on the precautions of the front view camera, refer to “Forward Collision-Avoidance Assist (FCA)” section in chapter 7.
Limitations of Navigation-based
Smart Cruise Control
Navigation-based Smart Cruise Control
may not operate properly under the
following circumstances:
The navigation is not working properly
Map information is not transmitted
due to infotainment s ...
Lane Following Assist Settings
Setting features
Turning Lane Following Assist On/Off
With the engine on, shortly press the
Lane Driving Assist button located on the
steering wheel to turn on Lane Following
Assist. The white or ...
