Hyundai Santa Cruz: Seat Electrical / Lumber Support System

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the front seat back cover.(Refer to Body - "Front Seat Back Cover")

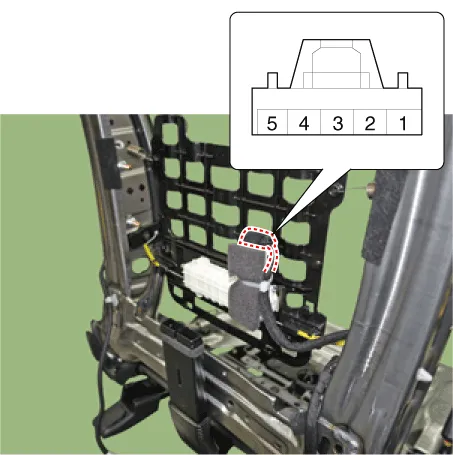

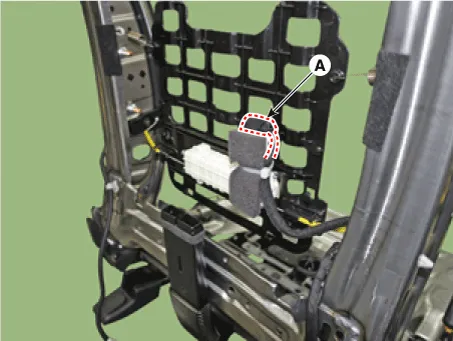

3.Disconnect motor connecotor (A).

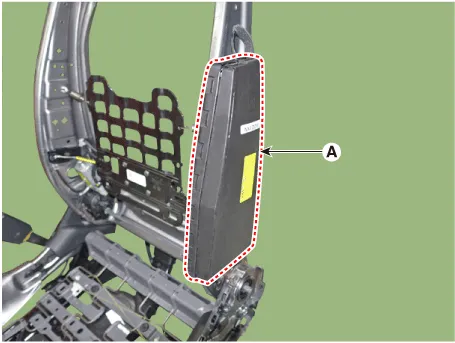

4.Remove the front side airbag (A).

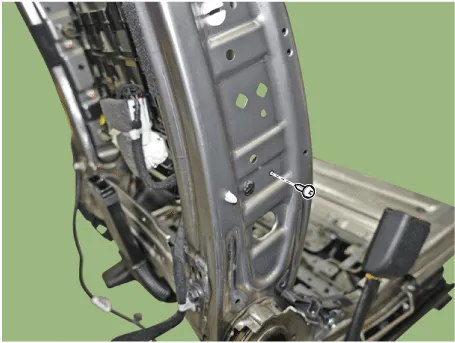

5.Remove the lumber support cable bracket after loosening mounting screws.

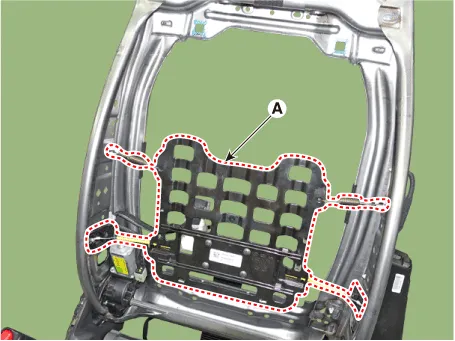

6.Remove the lumber support (A).

- Installation

1.Install the lumber support assembly.

2.Install the seat back cover.

- Inspection

1.Remove the front seat back cover.

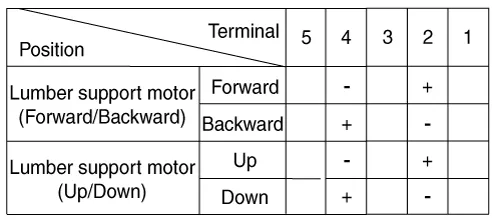

2.When the battery power is supplied to the motor connector, check the motor for smooth operation.

3.Reverse the connections and check that the motor turns in reverse.

4.If the motor runs abnormally, replace it.
