Hyundai Santa Cruz: Smart Key / Mechanical key
If the Smart Key does not operate normally, you can lock or unlock the driver’s door by using the mechanical key.

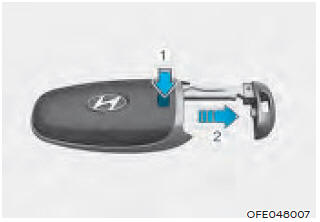

To remove the mechanical key from the smart key FOB:
.jpg)
Press and hold the release button (1) and remove the mechanical key (2). Insert the mechanical key into the key hole on the door.
Push Button Start/Stop
Some models are equipped with a push
button start instead of a key cylinder.
You can leave your Smart Key in your
pocket or purse when you start your
vehicle.
Information
If the smart key is not m ...
Key Cylinder (Driver Door)
A key cylinder is located on the driver
side door handle hidden behind a plastic
cover. Using the mechanical key, push
and hold the key cylinder cover release
button located on the underside of th ...
