Hyundai Santa Cruz: Power Windows / Power Window Switch

- Removal Driver Power Window Main Switch

1.Disconnect the negative (-) battery terminal.

2.Remove the front door trim.(Refer to Body - "Front Door Trim")

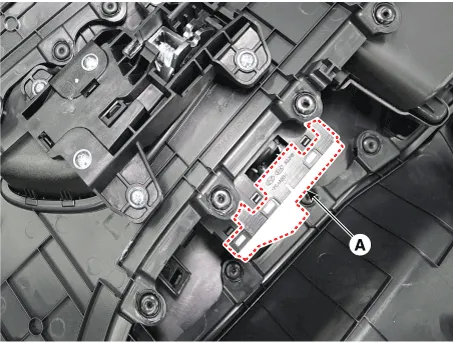

3.Remove the power window main switch assembly (A).

Assist/Rear Power Window Switch

1.Disconnect the negative (-) battery terminal.

2.Remove the door trim.(Refer to Body - "Front Door Trim")(Refer to Body - "Rear Door Trim")

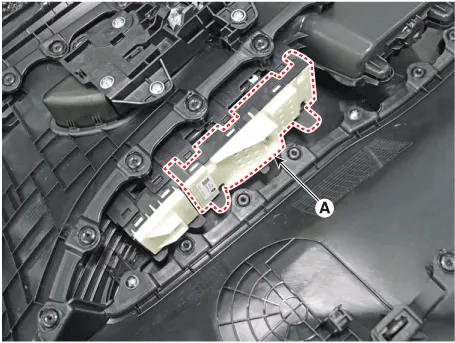

3.Remove the assist/rear power window switch assembly (A).

- Installation Power Window Switch

1.Install the power window switch assembly.

2.Install the front/rear door trim after connecting the connector.

3.Connect the negative (-) battery terminal.

- Inspection Diagnosis with diagnostic tool

1.In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).The diagnostic system (diagnostic tool) provides the following information.

(1)Fault Code Searching : Checking failure and code number (DTC)

(2)Data Analysis : Checking the system input/output data state

(3)Actuation test : Checking the system operation condition

(4)S/W Management : Controlling other features including system option setting and zero point adjustment

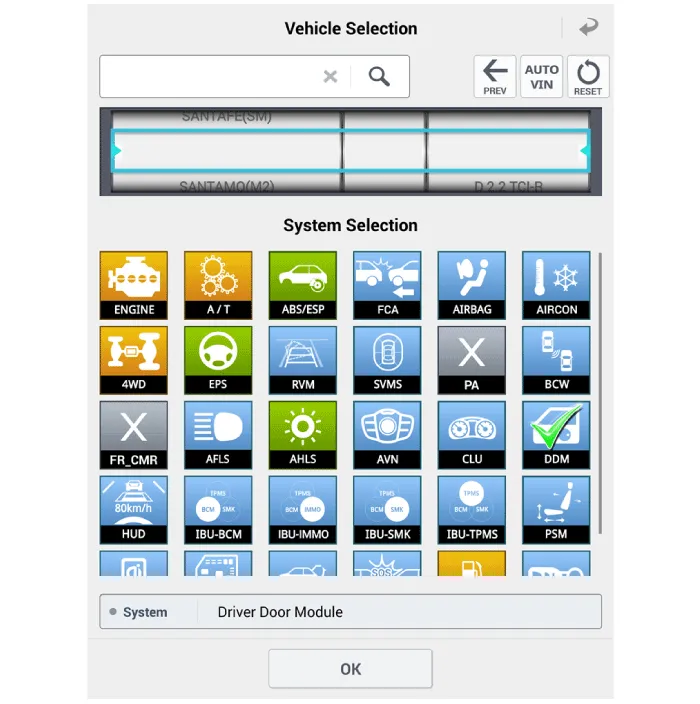

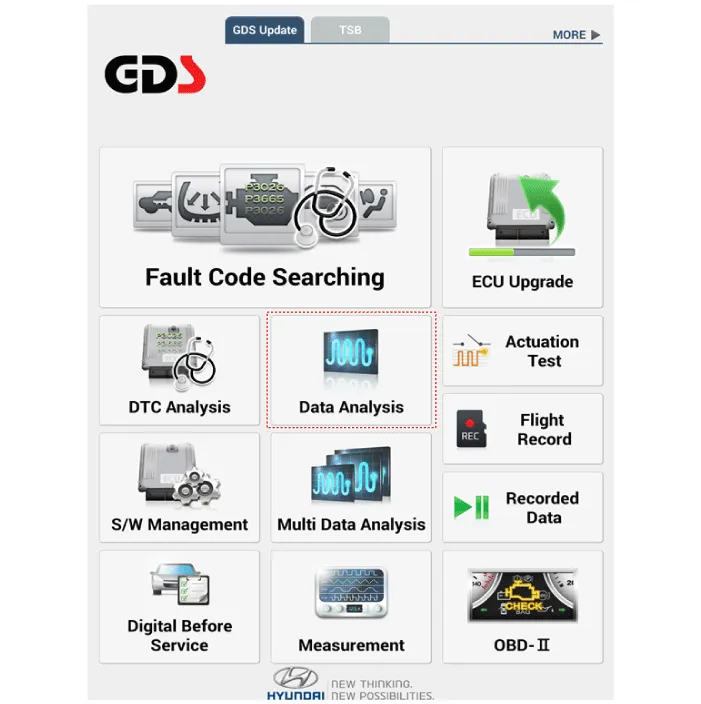

2.If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".

3.Select the 'Data Analysis' and 'Car model'.

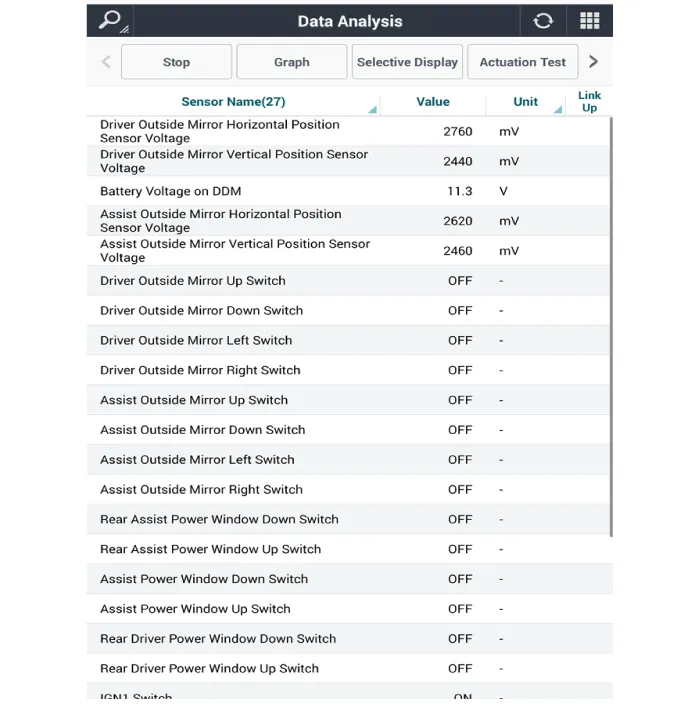

4.Select the 'DDM' to search the current state of the input/output data.

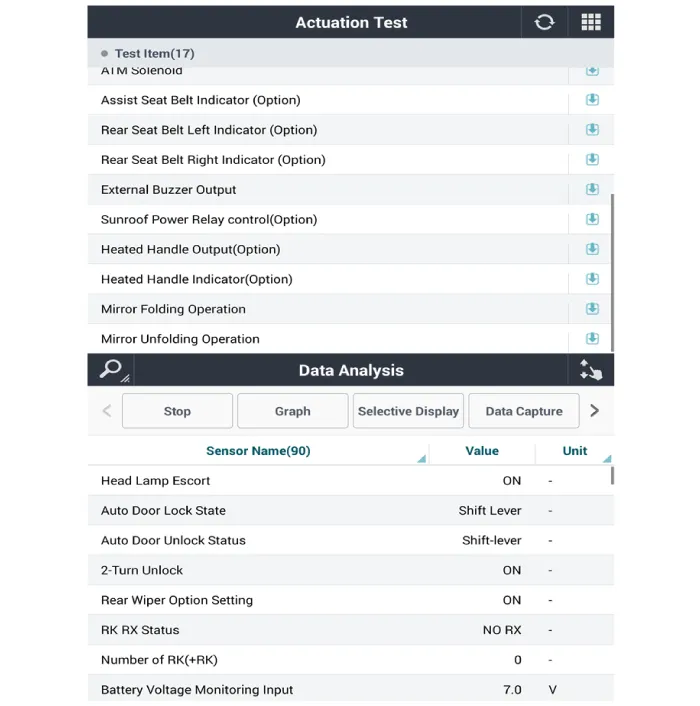

5.To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.

    Power Window Motor
    - Components - Inspection Front Power Window Motor 1.Disconnect the negative (-) battery terminal. 2.Remove the front door trim.(Refer to Body - "Front Door Trim") 3.Disconnect the mot ...
