Hyundai Santa Cruz: Power Windows / Power Window Motor

- Components

- Inspection Front Power Window Motor

1.Disconnect the negative (-) battery terminal.

2.Remove the front door trim.(Refer to Body - "Front Door Trim")

3.Disconnect the motor connector from the motor.

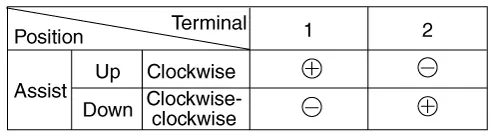

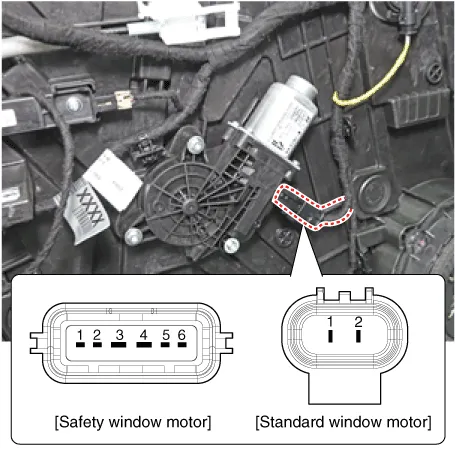

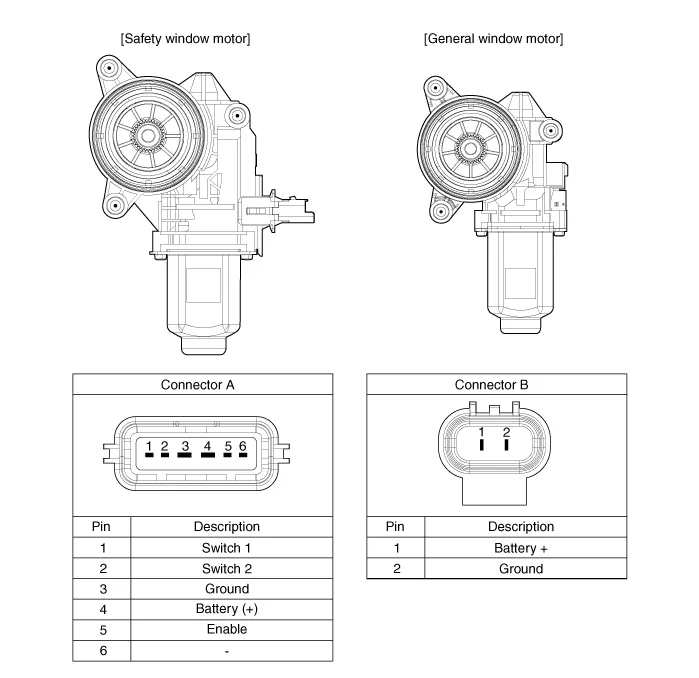

4.Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.[Safety Window Motor]

5.Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.[Standard Window Motor]

Rear Power Window Motor

1.Disconnect the negative (-) battery terminal.

2.Remove the rear door trim.(Refer to Body - "Rear Door Trim")

3.Disconnect the motor connector from the motor.

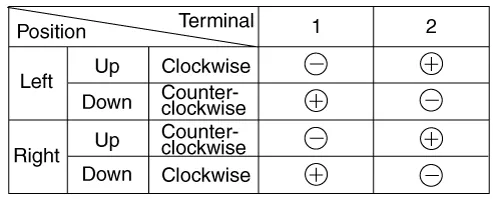

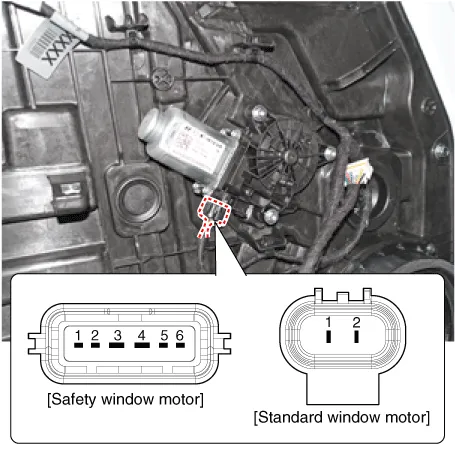

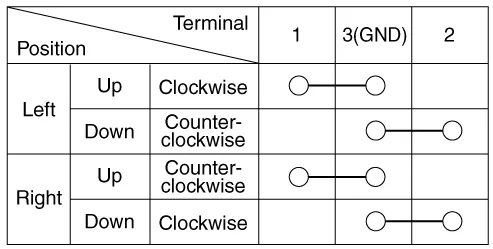

4.Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.[Safety Window Motor]

5.Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.[Standard Window motor]

    Components and Components Location
    - Component Location 1. DAU (Door Area Unit)2. Assist window switch3. Front window motor4. Rear window motor5. Rear window switch ...

    Power Window Switch
    - Removal Driver Power Window Main Switch 1.Disconnect the negative (-) battery terminal. 2.Remove the front door trim.(Refer to Body - "Front Door Trim") 3.Remove the power window main switch ...
