Hyundai Santa Cruz: Power Windows / Components and Components Location

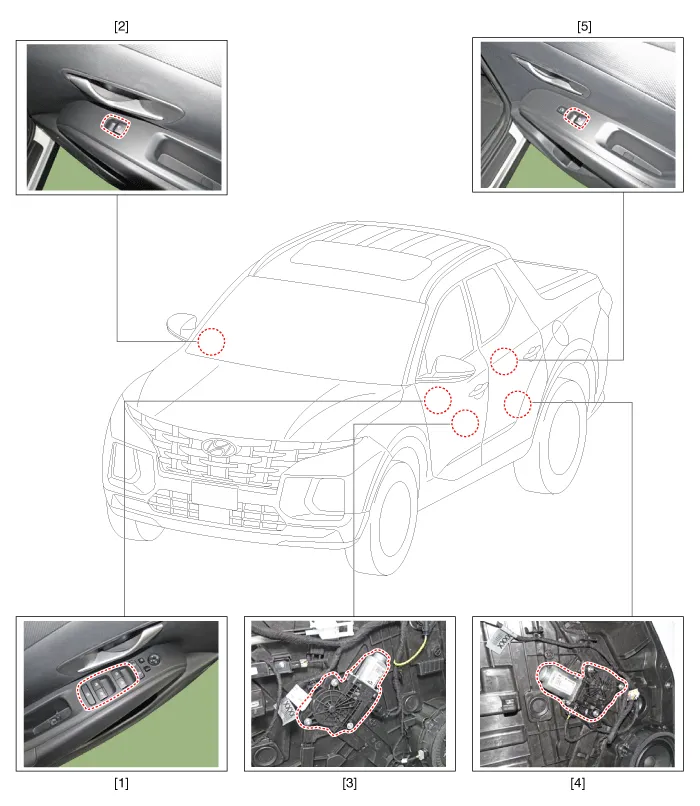

- Component Location

1. DAU (Door Area Unit)
2. Assist window switch
3. Front window motor
4. Rear window motor
5. Rear window switch


    Description and Operation
    - Operation Function Of Safety Power Window When driver door power window auto-up switch is operated, safety function is activated.1.Safety function conditionWhen detect the force of 100N (using t ...

    Power Window Motor
    - Components - Inspection Front Power Window Motor 1.Disconnect the negative (-) battery terminal. 2.Remove the front door trim.(Refer to Body - "Front Door Trim") 3.Disconnect the mot ...
