Hyundai Santa Cruz: Fuses / Fuse/Relay Panel Description

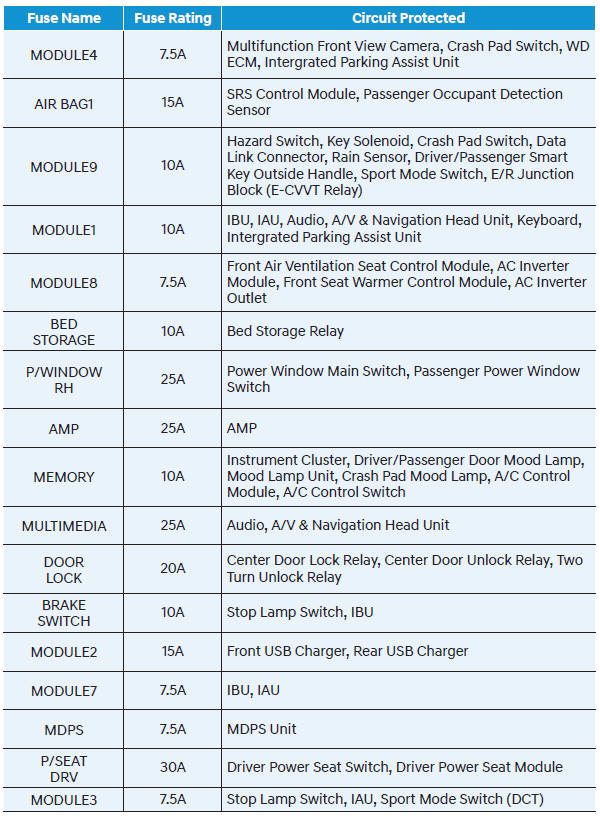

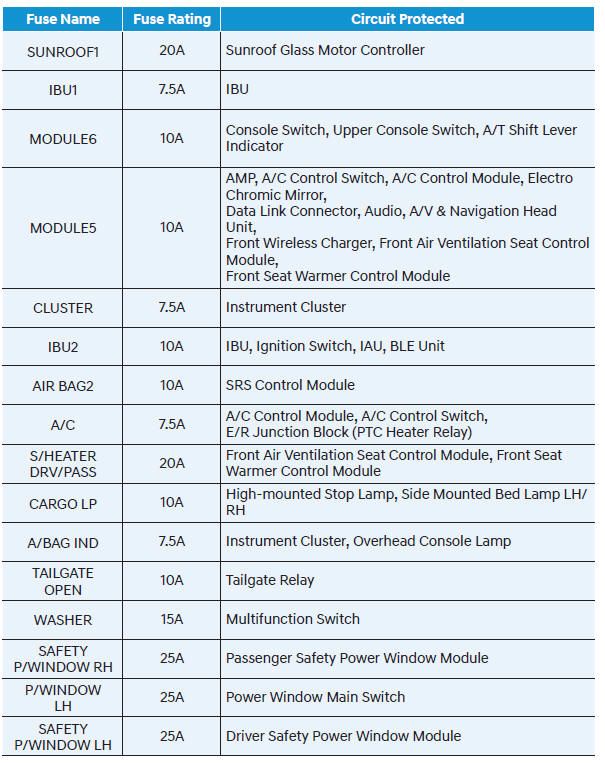

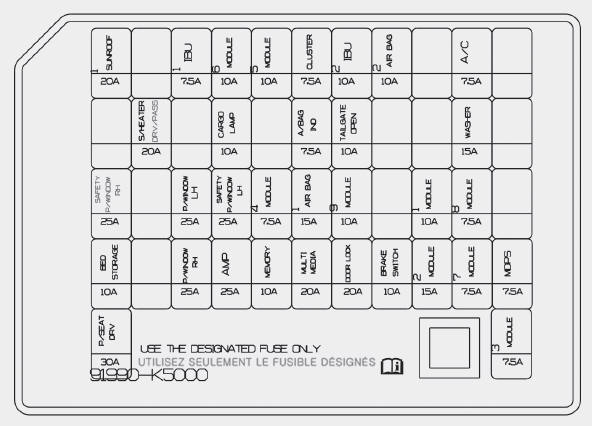

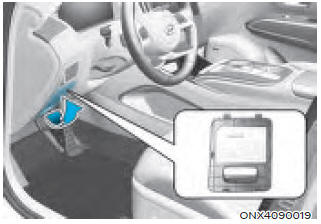

Instrument panel fuse panel

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

Instrument panel fuse panel

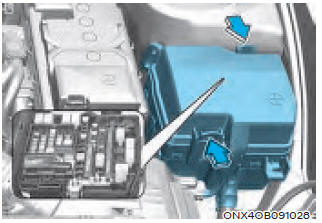

Engine compartment fuse panel (Engine room junction block)

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

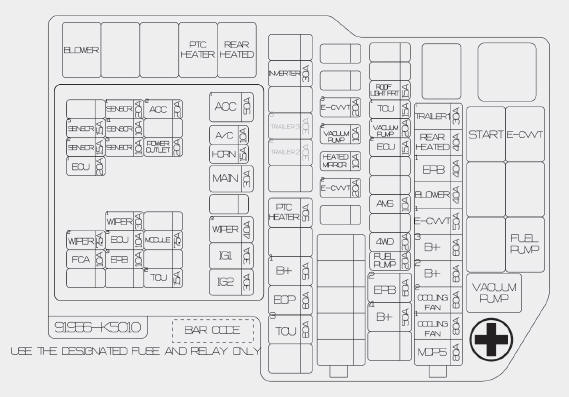

Engine compartment fuse panel

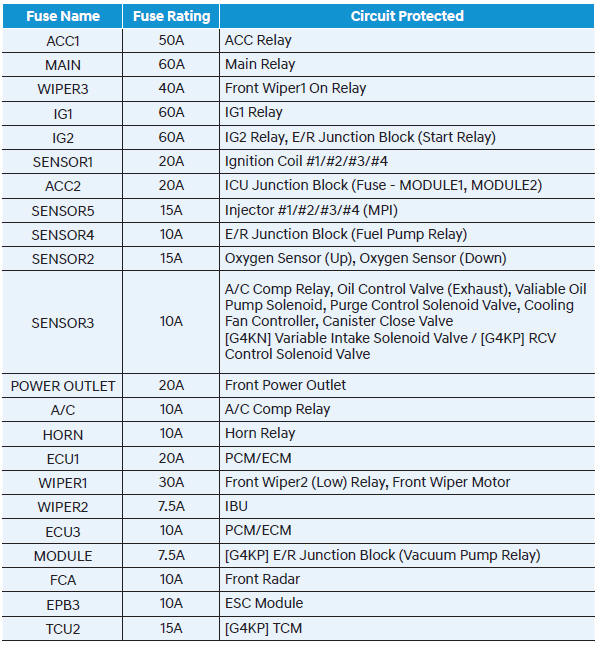

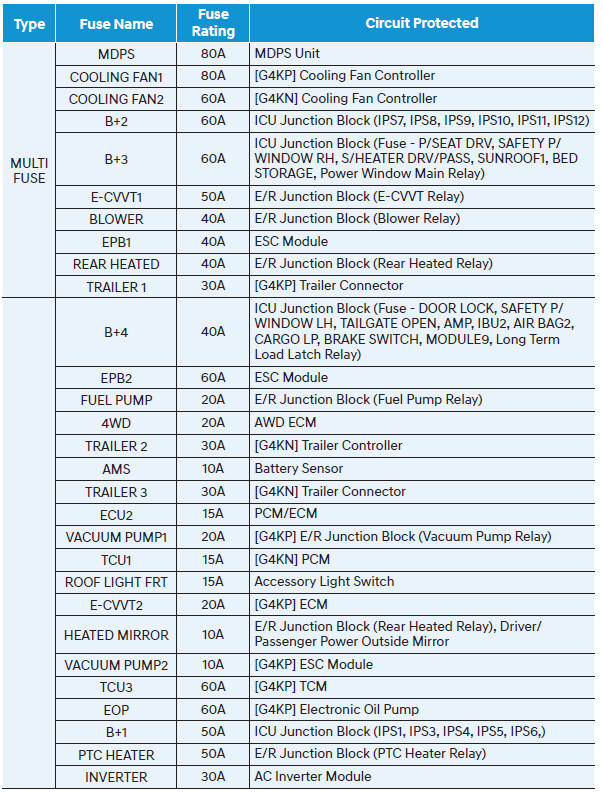

Engine compartment fuse panel

    Engine Compartment Panel Fuse Replacement
    Blade fuse / Cartridge fuse 1. Turn the vehicle off. 2. Turn all other switches off. 3. Remove the fuse panel cover by pressing the tap and pulling up. 4. Check the removed fuse; replace it if it i ...

    Light Bulbs
    Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get to th ...
