Hyundai Santa Cruz: Fuses / Engine Compartment Panel Fuse Replacement

Blade fuse / Cartridge fuse

1. Turn the vehicle off.

2. Turn all other switches off.

3. Remove the fuse panel cover by pressing the tap and pulling up.

4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

NOTICE

After checking the fuse panel in the engine compartment, securely install the fuse panel cover. You may hear a clicking sound if the cover is securely latched. If it is not securely latched, electrical failure may occur from water contact.

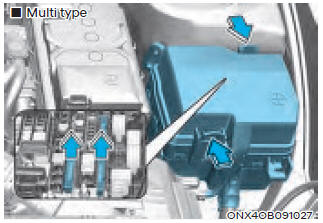

Multi fuse

If the multi fuse or midi fuse is blown, consult an authorized HYUNDAI dealer.
